UNICOMM

-------

Manufacturer: NIVELCO(HUNGARY)

Model:  SAT304 Series

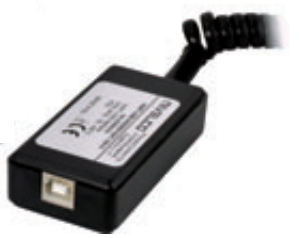

           The UNICOMM interface modules are able to establish communication line between HART-capable field devices and process controller computer. The UNICOMMHART modems are applicable not only for NIVELCO transmitters, but for all HART-capable transmitters which use standard HART communication. The device is galvanically isolated from both (USB and HART) sides, when it is used as a HART-USB modem, connected into the USB input of a PC, the modem does not need external power supply. The UNICOMM SAK-305modules can be connected into a suitable device with RS485 interface input, used as a HART-RS485 modem. The communication protocol is HART on the RS485 line. In this case the device needs external power supply. The Ex versions can be connected to transmitters placed in hazardous areas.

Main Features:

• Transferring measurement data to PC
• Connecting field transmitters to the,
• USB or RS485 input of a PC
• DIN rail mountable version
• No need for power supply
• Galvanic isolation
• IP 20 protection

Technical Data:

Order:

CATALOGUE TIẾNG VIỆT

CATALOGUE TIẾNG ANH

Universal Interface Module: UNICONT PJK-100

Current Controlled Switch: UNICONT PKK-312

Intrinsically Safe Isolator / Power Supply Module: UNICONT PGK

Time Relay: NITIME JEL-100

• ĐẠI LÝ PHÂN PHỐI TẠI VIỆT NAM :



  CÔNG TY TNHH TM-DV-KT CAO VIỆT CƯỜNG
  83/29 Vườn Lài, Phường Phú Thọ Hòa, Quận Tân Phú, TP. HCM
  Tel: 08-3813 4681/Fax: 08-3813 4680
  Website: www.caovietcuong.com | Email: sales@caovietcuong.com



Chứng chỉ tùy chọn:

■ ATEX (Ex ia G) ■ ATEX (Ex d [ia] G) ■ IEC Ex (Ex ia G) ■ IEC Ex (Ex d [ia] G) ■ INMETRO (Ex ia G)

-Test repỏt-C/O Nhà máy-C/Q Nhà máy-C/O phòng thương mại
