UNICONT

-------

Manufacturer: NIVELCO(HUNGARY)

Model:  PM400 Series

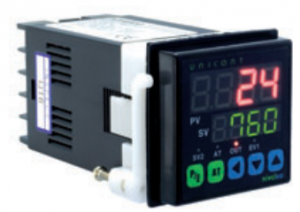

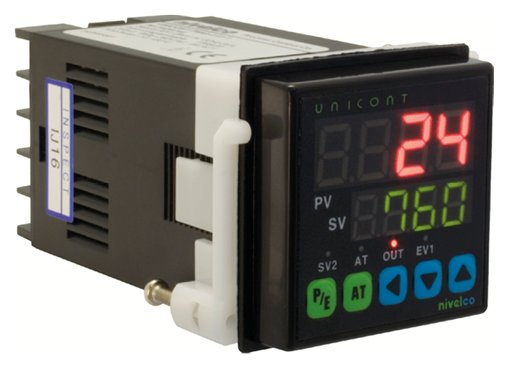

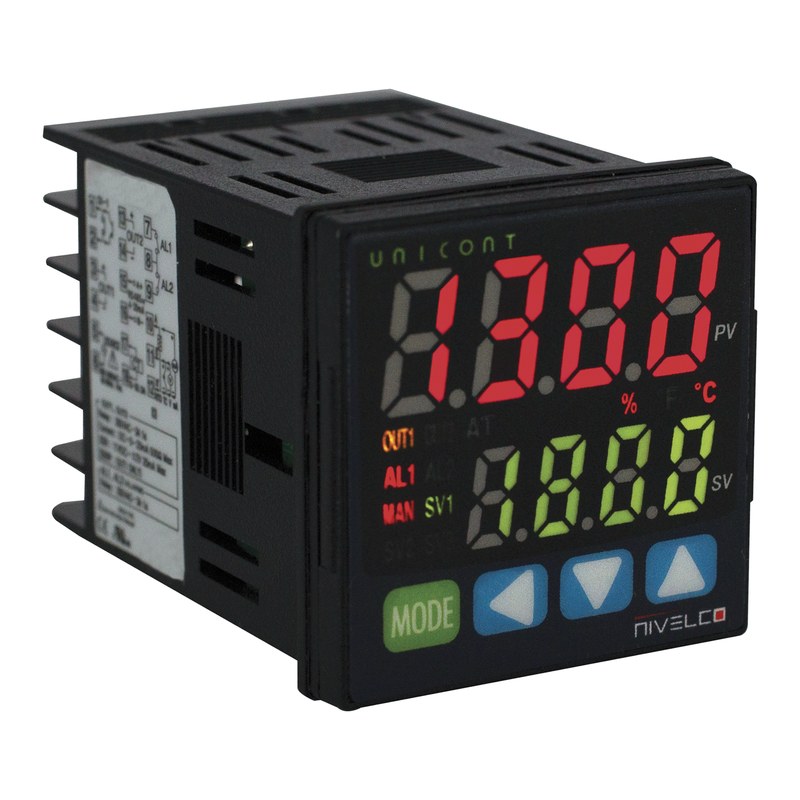

            The UNICONT PMG-411, PMG-412 and PMG-413 universal analogue PID-controllers can be used with a Pt-100 resistance thermometer and with different thermocouples for temperature measurement, control as well as processing the signals of transmitters with 4 … 20 mA and 1…5 V DC or 0…10 V DC output. The output signal of the controller can be a relay, continuos 4 … 20 mA process current signal or SSR-driver. Additional alarm relay provides for limit monitoring. The unit is microprocessor based, has an auto-tuning software, automatic and its PID controller able to find the optimum of the P-I-D constants. The setting can be performed by the keyboard on the front side. The large bi-coloured display provides easy reading even from far distance. The process parameters are red, the set values are green.

Main Features:

• Universal input
• 4…20 mA output, relay outputs
• SSR driver output
• RS485 communication
• ON-OFF and PID control
• Power supply for transmitters
• Auto tuning (AT) feature
• DIN 48x48 mm front panel

Technical Data:

Order:

CATALOGUE TIẾNG VIỆT

CATALOGUE TIẾNG ANH

Multichannel Process Controller: USER RS485 manual

Universal Controller / Indicator - PROGRAMMING GUIDE: UNICONT PMG-500

• ĐẠI LÝ PHÂN PHỐI TẠI VIỆT NAM :



  CÔNG TY TNHH TM-DV-KT CAO VIỆT CƯỜNG
  83/29 Vườn Lài, Phường Phú Thọ Hòa, Quận Tân Phú, TP. HCM
  Tel: 08-3813 4681/Fax: 08-3813 4680
  Website: www.caovietcuong.com | Email: sales@caovietcuong.com



Chứng chỉ tùy chọn:

■ ATEX (Ex ia G) ■ ATEX (Ex d [ia] G) ■ IEC Ex (Ex ia G) ■ IEC Ex (Ex d [ia] G) ■ INMETRO (Ex ia G)

-Test repỏt-C/O Nhà máy-C/Q Nhà máy-C/O phòng thương mại
