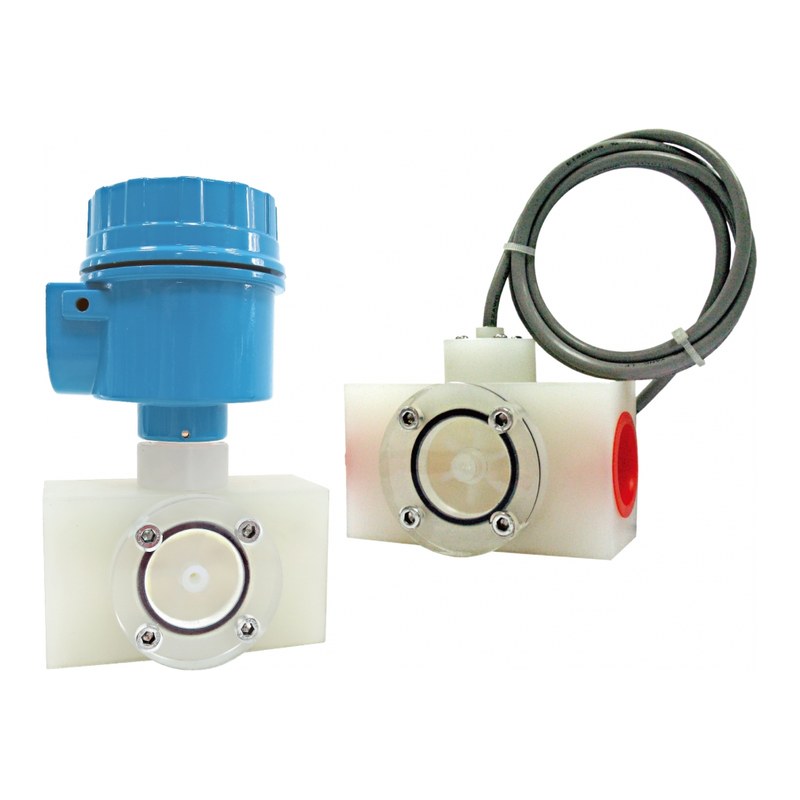

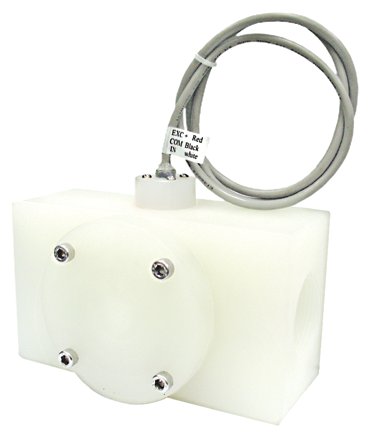

Paddle Wheel Liquid Flow Meter

------------------------

Manufacturer: New-Flow(Taiwan)

Model: HF100 Series

Technical Data:

Connecting Size: 3/8", 1/2", 3/4", 1" NPT female standard.
Power Supply: 3.8V to 30VDC.
Output: Sink(NPN).
Material: Body - polypropylene.
Cover-acrylic, PP, PTFE available.
Rotor-PVDF
Shaft-ceramic
Bearings-ceramic.
O-ring: Viton.
Max. Temperature: 70⁰C.
Max. Pressure: Polypropylene and PTFE-10kg/cm²
PVDF-15kg/cm²
Accuracy: +/-2% F.

Demension:

------------------------------------------------------------------------------------------------------------------------------------
