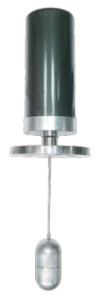

Float-Operated Level

----------------------------

Manufacturer: NEW-FLOW(Taiwan)

Model: EDW601 Series

Technical Data:

Material: Wetted parts SS316
The suitable S.G: >= 0.9
Weather proof: IP65
Explosion proof: CLASS I,GROUP A,B,C,D; CLASS II, GROUP E,F,G; NEMA 4X
Alarm switch: one or two setting points, form A N.O.tupe bistable reed switch
Switch rating: AC 125V 0.5 / DC 100V 10W / Max. DC 250V < 1mA
Max. Temperature: 200⁰C
Switch number: Maximum Point 6
Distance between two switch: 25mm
Adjustable length High and Low Level: 300mm
