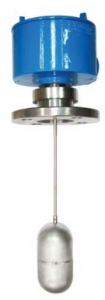

Float Level Switch One Stage Series

----------------------------

 Manufacturer: NEW-FLOW(Taiwan)

 Model: EDX602 Series

Technical Data:

Material: Wetted parts - SS316, SS304 available
The suitable S.G: >= 0.9 for max.length 1.2M; >= 0.8 for max.length 0.8M; >= 0.7~0.75 for less 0.5M
Weather proof: IP65
Explosion proof: EEx d II C T6
Micro switch rating(SPDT & DPDT Type): 5A125VAC, 3A250VAC, 3A/30VDC, 0.4A/125VDC, 0.2A/250VDC
Max.temperature: 200⁰C
Max.pressure: 40kg/cm² at 25⁰C
