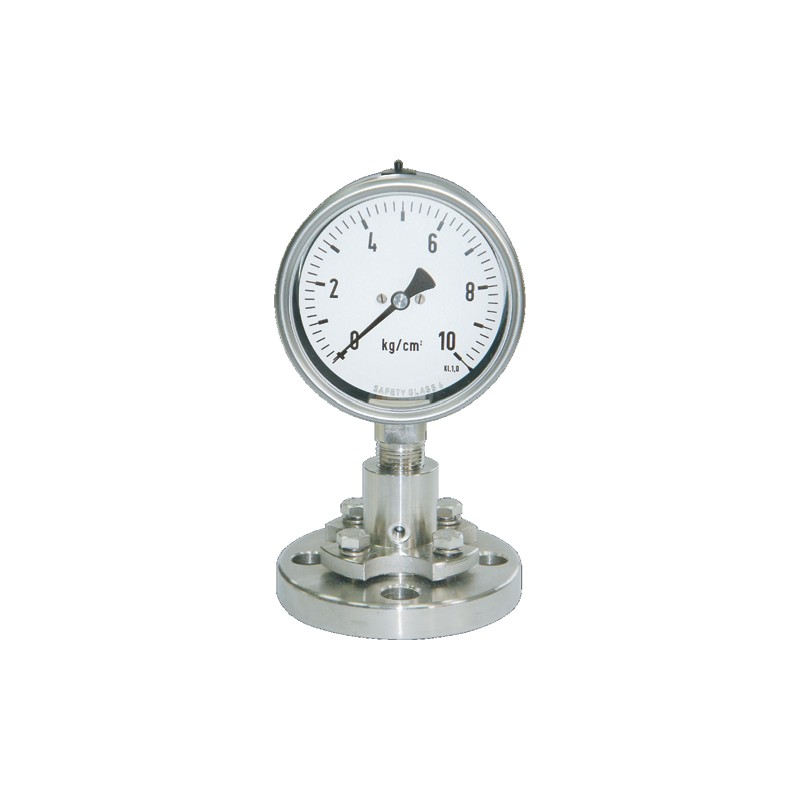

Đồng Hồ Áp Suất Màng DT122



Model	:	DT122
Manufacture	:	NEW - FLOW
Instrument connection	:	female thread 1/4" to 1/2" BSP or NPT
Membrane size	:	Ø36, Ø45, Ø75 available
Process connection	:	1/2" to 3" Flange, JIS, ANSI, DIN available
Temperature limited	:	-40 ~+ 150°C cooling element or capillary line up to 350°C
Pressure range limited	:
Ø75 Membrane	:	-760 mmHg~0, Minimum process flange 2" x 150#
Ø45 Membrane	:	Maximum up to 40 kg/cm²
		Minimum -1~3 kg/cm², 0~4 kg/cm²
		Minimum process flange 3/4" x 150#
Ø36 Membrane	:	Maximum up to 40 kg/cm²
		Minimum 0~6 kg/cm²
		Minimum process flange 1/2" x 150#
Material	:	Upper & Lower housing-SS316 (standard), others on request
Membrane	:	SS316L (standard); Options- Hastelloy C276, tantalum, and others on request.

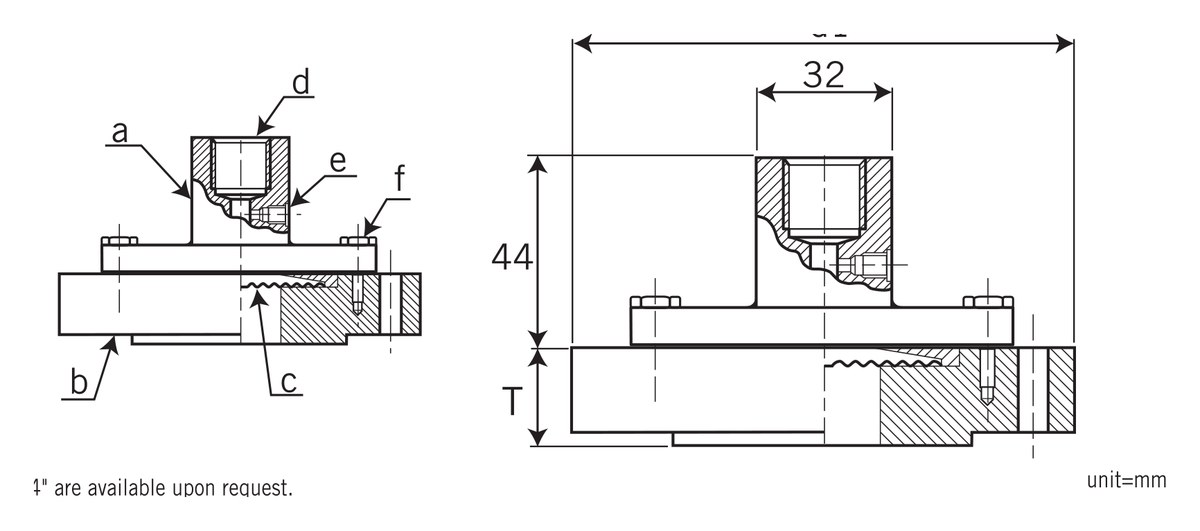

Dimensions



Item	Description of Parts
a	Upper housing
b	Lower housing
c	Membrane
d	Instrument connection
e	Filling port
f	Screw bolt













Ordering Information



Code	Instrument Connection (Female)
(A)	1/4"BSP
(B)	1/4"NPT
(C)	3/8"BSP
(D)	3/8"NPT
(E)	1/2"BSP
(F)	1/2"NPT

















Code	Membrane size
(A)	Ø36
(B)	Ø45
(C)	Ø75











Code	Process connection rating
(1)	1/2"
(2)	3/4"
(3)	1"
(4)	1½"
(5)	2"
(6)	3"
(7)	Option

















Code	Flange rating
(1)	150#
(2)	300#
(3)	PN16
(4)	PN25
(5)	JIS 10K
(6)	JIS 20K
(7)	Option

 .















Code	Upper housing material
(S)	SS316 (standard)
(O)	Option









Code	Lower
(S)	SS316
(O)	Option









Code	Membrane material
(1)	SS316L
(2)	Hastelloy C276
(3)	Tantalum
(4)	Option















EX. Air Purge & Pressurization	Pressure Switch	Diaphragm Seal	Digital Pressure Gauge/Switch
EXP_System	PS2000W	DT107	DPG3000
Vacuum Switch	PS2000X	PG_PGF_60P	DPG3000T
PS1000W	PS2100W	DT101	DPG3100T
PS1000X	PS2100X	DT102	DPG3500
Pressure Gauge w/Micro Switch	PS2200W	DT103	DPG3600
PIS5000	PS2200X	DT104	DPG3650
PIS5000X	PSA2000W	DT105	DPG3700
Diff. Pressure Gauge/Switch	PSA2000X	DT106	DPG3800
DPS2000X	PSA2100W	DT107	Pressure Transducer
DPS2100W	PSA2100X	DT108	PT3100
DPS2100X	PSA2200W	DT110	PT5000
DPS2200W	PSA2200X	DT111	Air Header & Manifold
DPS2200X		DT112	AHM_Series
DPS2300X		DT_VDT114	U-Tube Manometer
DPH		DT_VDT116_DTC116	U_Series
DPH200		DT_VDT118	Seal & Condensate Pot
DPH300		DT121	POT_1
DPH400		DT122	POT_2
DPG4000		DT_VDT123_DTC123
DPG5000		DT127
		DT128
		DT129
		DT130
		DT131
		DT132
		DT133
		DT134
		DT140_DTC140
		DT141



Diaphragm seal	Pressure switch	Diff. pressure gauge/sw	Digital pressure gauge
DT132-instruction manual	Pressure Switch-instruction manual	DPS2100X-instruction manual	DPG3650-instruction manual
		DPS2000X-instruction manual	DPG3600-instruction manual
Over pressure protector	Pressure transducer	DPH-instruction manual	DPG3500-instruction manual
OPT-instruction manual	PT5000-instruction manual	DPH200/300/400-instruction manual	DPG3100T-instruction manual
Pressure gauge w/micro switch	PT3100-instruction manual	DPG4000/DPG5000-instruction manual	DPG3000T-instruction manual
PIS5000(X)-instruction manual	U-Tube manometer		DPG3000-instruction manual
	U-Tube-instruction manual
