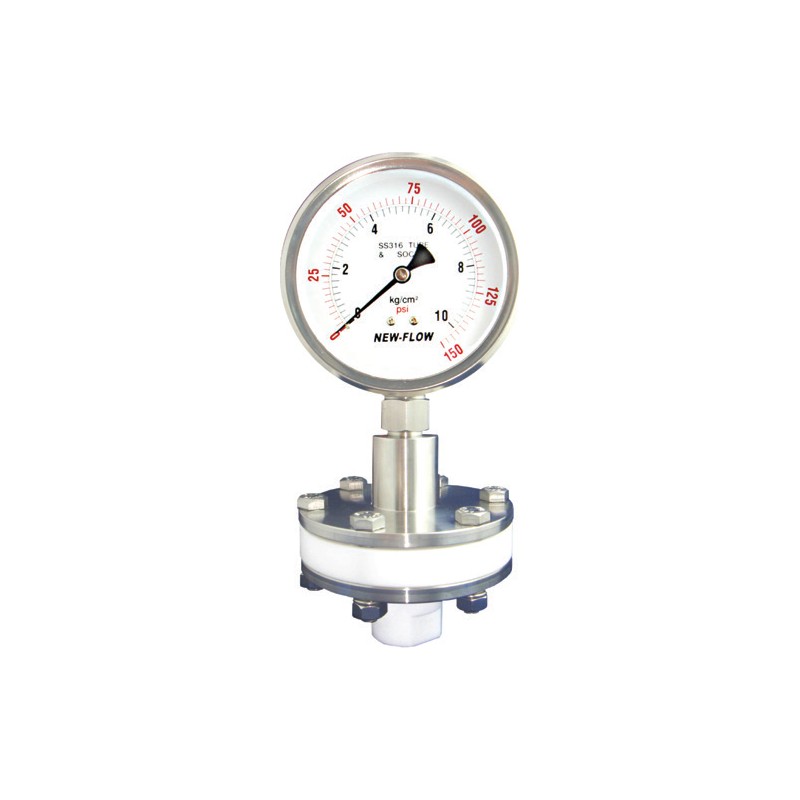

Đồng Hồ Áp Suất Màng DT114

Model                                     : DT114

Manufacture                          : NEW - FLOW

Instrument connection        : Female thread ¼" to ½" BSP or NPT

Membrane size                     : Ø55, Ø75

Process connection             : ¼" to ½" BSP or NPT

Measurement range             : -760mmH2O ~ 0 ~ 10 kg/cm² (Ø75 Membrane)

                                                  0 ~ 25 kg/cm² (Ø55 Membrane)

Max. temperature                 : Up to 120°C

Material                                  : Upper housing - SS316 (standard); Low housing - P.V.C, P.P, PVDF, Teflon available

Membrane material               : SS316L + Teflon lining (standard); Options - Hastelloy C276, Tittanium, Tantalum and others on request.

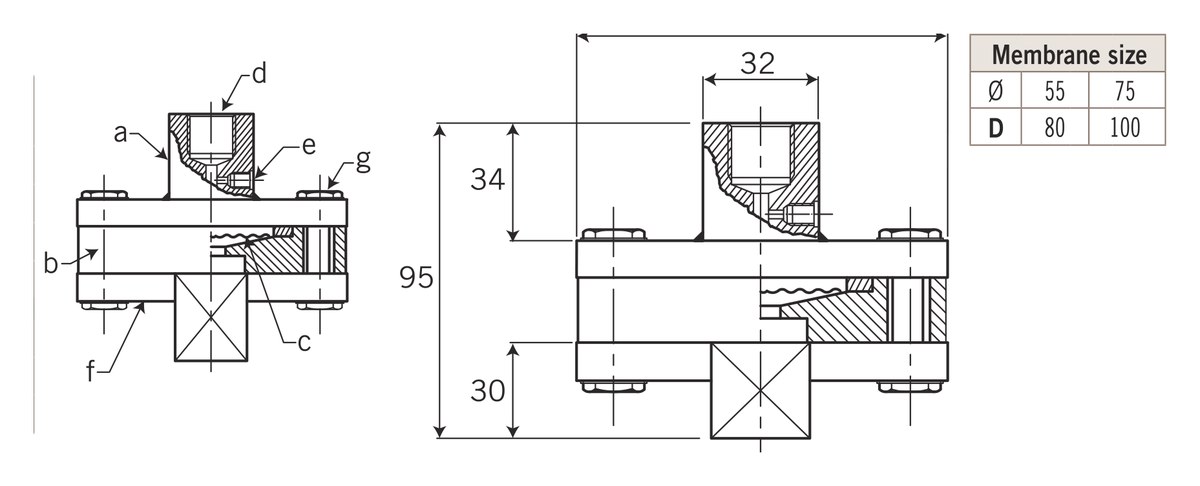

Dimensions



Item	Description of Parts
a	Upper housing
b	Low housing
c	Membrane
d	Instrument connection
e	Filling port
f	Supporting ring
g	Screw bolt















 Ordering Information



Code	Instrument Connection Size
(A)	¼"
(B)	3/8"
(C)	½"











Code	Instrument Connection Rating
(1)	NPT
(2)	BSP









Code	Upper Housing Material
(S)	SS316
(O)	Option









Code	Low Housing Material
(V)	PVC
(P)	P.P
(T)	Teflon
(PV)	PVDF











------------------------------------------------------------------------------------------------------------------------------------

ĐẠI LÝ PHÂN PHỐI CHÍNH THỨC TẠI VIỆT NAM |  CÔNG TY TNHH TM-DV-KT CAO VIỆT CƯỜNG
  Số 89 hẻm 249 Tân Kỳ Tân Quý, P.Tân Sơn Nhì, Q.Tân Phú, HCMC
Tel: 08-3813 4681/Fax: 08-3813 4680
Hotline: 0908 507 021/ 0909 951 237 | Email: sales@caovietcuong.com
Website: www.caovietcuong.com | www.thietbidomuc.com











Code	Membrane Material
(H)	Hastelloy C
(Ti)	Titanium
(Ta)	Tantalum
(Tf)	SS316 + Teflon lining
(O)	Option













Code	Process Connection Size
(A)	¼"
(B)	3/8"
(C)	½"











Code	Process Connection Thread
(A)	NPT (male)
(B)	NPT (female)
(C)	PF (male)
(D)	PF (female)
