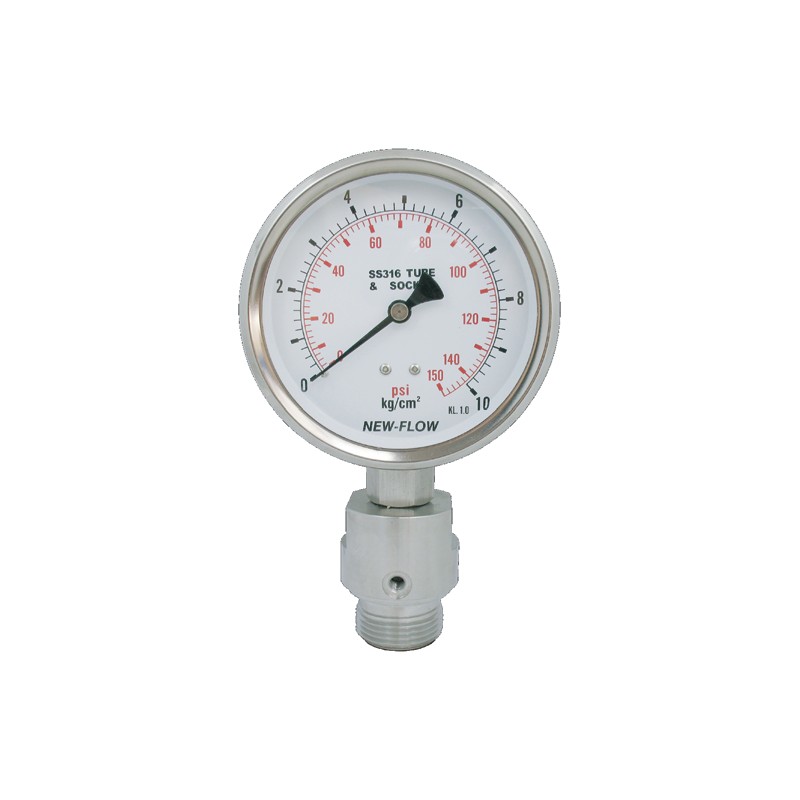

Đồng Hồ Áp Suất Màng DT104

Model                                 : DT104

Manufacture                      : NEW - FLOW

Instrument connection    : female thread ¼" to ½" BSP or NPT

Process connection         : 1" to 2" NPT male thread

Temperature limited         : -40~+150°C

Pressure range limited    : (for pressure gauge)

Size	1"	1½"	2"
MINIMUM LIMITED (kg/cm²)	0~10	0~4	0~1.6
MAXIMUM LIMITED (kg/cm²)	0~60	0~40	0~16











Material                              : body-SS316 (standard)

Option                                : SS316L, Hastelloy C276, and others on request

Membrane                         : SS316L(standard)

Option                                : Hastelloy C276, tantalum and others on request

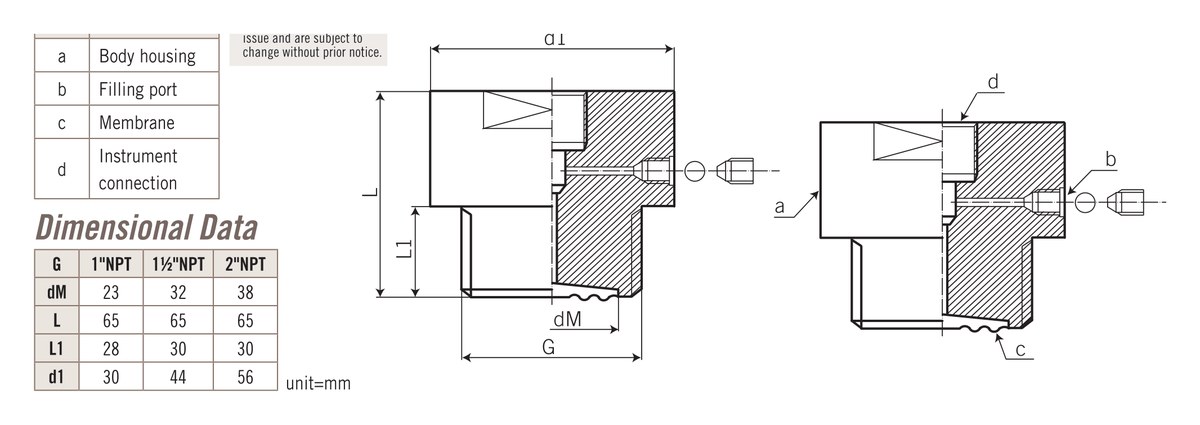

Dimensions



Item	Description of Parts
a	Body housing
b	Filling port
c	Membrane
d	Instrument connection











Dimensional Data



G	1"NPT	1½"NPT	2"NPT
dM	23	32	38
L	65	65	65
L1	28	30	30
d1	30	44	56











Ordering Information



Code	Instrument Connection (Female)
(A)	¼"BSP
(B)	¼"NPT
(C)	3/8"BSP
(D)	3/8"NPT
(E)	½"BSP
(F)	½"NPT

















Code	Process connection (Male)
(1)	1"NPT
(2)	1½"NPT
(3)	2"NPT











Code	Body material
(S)	SS316 (standard)
(O)	Option









Code	Membrane material
(1)	SS316L
(2)	Hastelloy C276
(3)	Tantalum
(4)	Option











------------------------------------------------------------------------------------------------------------------------------------
