UNICONT

-------

Manufacturer: NIVELCO(HUNGARY)

Model:  PM500 Series

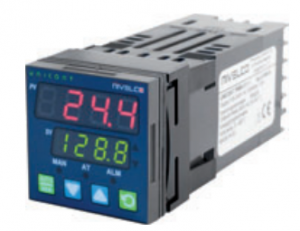

            The UNICONT PM-500series universal controllers are 1/16 DIN (48x48 mm) process controllers with relay and analogue outputs and PID algorithm supporting versatile functions. The universal analogue PID-controllers can be used with a Pt-100 resistance thermometer and with different thermocouples for temperature measurement, control as well as processing the signals of transmitters with 4 –20mA and 0 – 5 V DC or 0 – 10 V DC output. The output signal of the controller can be a relay, continuous 4 – 20 mA process current signal or SSR-driver. Additional alarm relay provides for limit monitoring. The unit is microprocessor based, has an auto-tuning software, its PID controller is able to find the optimum of the P-I-D constants. PMM-500series models are able to communicate on RS485 line and also able to provide power supply for transmitters. The large bi-coloured display provides easy reading even from far distance..

Main Features:

• Universal input
  –RTDs / Thermocouples,
  –Voltage / Current

• Multiple output variations
  –4-20 mA output
  –Relay outputs
  –SSR driver output
  –Power supply for transmitters
  –RS485 communication

• ON-OFF and PID control

• Auto tuning (AT) feature

• DIN 48x48 mm front panel

Technical Data:

Order:

---------------------------------------------------
