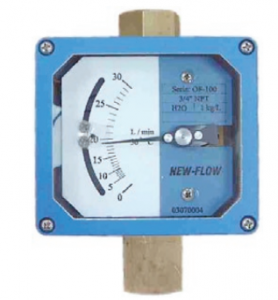

Flow Switch And Indicator

--------------------------

Manufacturer: New-Flow(Taiwan)

Model: OF100CS Series

Technical Data:

Piston type for high viscosity
Pluid: water, oil, other liquid available; Gases.
Flow Range: 15 ~ 24000 l/h(at water); 0.4 ~ 600 Nm³/h(at Air)
Accuracy: +/-3% F.S, On request: +/-2.5%F.S.
Size: 1/4" to 2 1/2".
Connection Type: NPT, Flange type on request.
Working Limits: Temperature: -40⁰C to +180⁰C.
Working Pressure: 30 kg/cm²
Option - 100 kg/cm² for 1" or less.
Option - 200 kg/cm² for 1 1/2" or bigger.
Pretection Class: IP65, Explosion proof.
Housung Material: Aluminum Alloy.
Lens Material: Safety glass.
Mounting: Vertical, Horizontal available.
Material: Wetted parts SS316; Teflon lining float for Gases application.
Alarm Switch: Micro switch, Inductive switch available.
Float Guide: Top plug 304 stainless steel.
Temperature & pressure limits: 120 psig(8.4 bar) @ 100⁰F(38⁰C).
Temperature limited: 0-45⁰C.
Accuracy: +/-3% full scale.
Mounting: vertical position.

Demension:

------------------------------------------------------------------------------------------------------------------------------------
