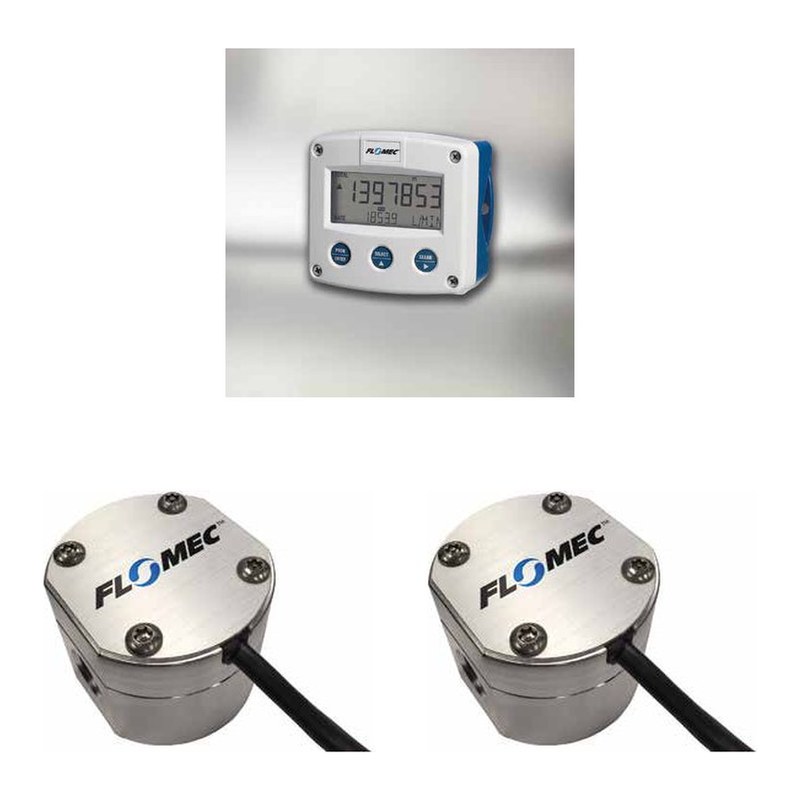

FLOMEC® Fuel Consumption System (FCS) is a complete fuel monitoring system that comprises 2x EGM positive displacement meters coupled with an F127 flow instrument for accurate measurement of fuel consumption rates and total fuel consumption. The FCS can accurately measure fuel consumption of combustion engines by correcting for temperature differences from the inlet to the outlet of the engine. Pulsating flow electronics, eliminating error due to fuel injection pulsation, coupled with integral PT100 resistance thermometers in FLOMEC’s renowned positive displacement meters gives an accurate and economic fuel consumption measurement solution for all engine sizes.

FEATURES / BENEFITS

EGM Flowmeter

• Flow Rates: 0.50 GPH – 21.1 GPM (2 L/hr – 80 L/min)
• Sizes: 1/4″ – 3/4″ (6 mm – 20 mm)
• Engine Power: 7.5HP – 5000HP (Please consult distributor for larger engines)
• Temperature Range: -40°F – +176°F (-40°C – +80°C)
• Body Material: Stainless Steel 316
• Rotor Material: PPS (Stainless Steel 316 for EGM006 meters)
• Cable Length: 2 meters (can extend using cable connector)e connector)

F127 Totalizer

• Casing: Robust IP66/IP67 field enclosure
• Display: 7-digit resettable total, 11-digit accumulated total with backlight
• Required Power Supply: 8 – 24V (dc) (back up power supply built in to save settings in case of power failure)
• Temperature Limit: -40°F – +176°F (-40°C – +80°C)
• Output Options: 4-20mA and pulse output available

APPLICATIONS

The FCS can accurately measure fuel consumption of combustion engines by correcting for temperature differences from the inlet to the outlet of the engine. Pulsating flow electronics, eliminating error due to fuel injection pulsation, coupled with integral PT100 resistance thermometers in FLOMEC’s renowned positive displacement meters gives an accurate and economic fuel consumption measurement solution for all engine sizes.

Chứng chỉ tùy chọn:

■ ATEX (Ex ia G) ■ ATEX (Ex d [ia] G) ■ IEC Ex (Ex ia G) ■ IEC Ex (Ex d [ia] G) ■ INMETRO (Ex ia G)

-Test repỏt-C/O Nhà máy-C/Q Nhà máy-C/O phòng thương mại
