Mô tả sản phẩm

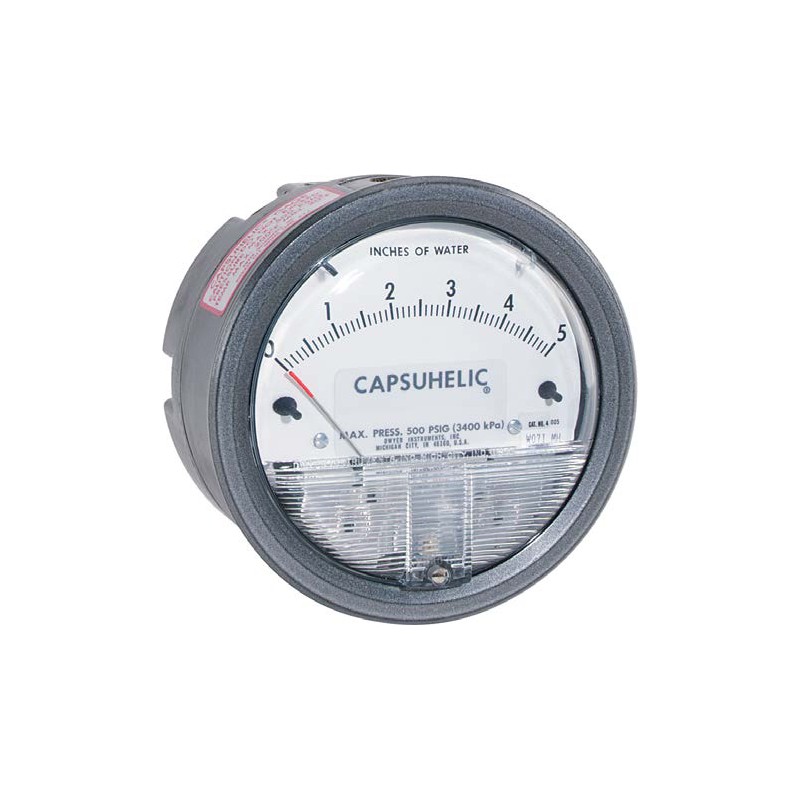

Đồng Hồ Đo Chênh Áp Series 4000
Model |
: |
SERIES 4000 |
Manufacturer |
: |
DWYERS |
Origin |
: |
USA |
Service |
: |
Aluminum case: Air and compatible gases and oil based liquids; Brass case: Air and compatible gased and water based liquids. |
Wetted Materials |
: |
Consult factory. |
Housing |
: |
Die cast aluminum with impregnated hard coating, standard. Optional forged brass housing is required for water or water based fluids. Special material diaphragms available, contact factory. |
Accuracy |
: |
±3% of full scale at 70°F (21.1°C). (±2% on 4000S models, ±4% on 4200, 4210, 4215, 4220, 4300, 4400, and 4500). |
Pressure Limits |
: |
-20" Hg to 500 psig. (-0.677 bar to 34.4 bar). |
Temperature Limits |
: |
20 to 200°F (-6.67 to 93.3°C) |
Size |
: |
4" (101.6mm) diameter dial face. |
Mounting Orientation |
: |
Diaphragm in vertical position. Consult factory for other position orientations. |
Process Connections |
: |
1/4" female NPT high and low pressure taps, duplicated - one pair top for air and gas, and one pair bottom for liquids. |
Weight |
: |
3 lb, 3 oz (1.45 kg) aluminum case; 7 lb, 13 oz (3.54 kg) brass case. |
Standard Accessories |
: |
Two 1/4" NPT plugs for duplicate pressure taps, four flush mounting adapters with screws and four surface mounting screws. |
Scales reading directly in flow, heights,etc., are also available.
Model |
Range, Inches of Water |
Model |
Range Zero Center Inches of Water |
*4000-0
*4001
*4002
*4003
*4004
*4005
*4006
*4008
*4010
*4015
*4020
*4025
*4030
*4040
*4050
*4060
*4080
*4100
*4150
*4200
*4300
*4400
*4500 |
0-.50
0-1.0
0-2.0
0-3.0
0-4.0
0-5.0
0-6.0
0-8.0
0-10
0-15
0-20
0-25
0-30
0-40
0-50
0-60
0-80
0-100
0-150
0-200
0-300
0-400
0-500 |
*4302
*4304
4310
4320
4330 |
1-0-1
2-0-2
5-0-5
10-0-10
15-0-15 |
Model |
Range PSID |
4201
4202
4203
4204
4205
4210
4215
4220
t4230S
t4260S
t42100S
t42300S |
0-1
0-2
0-3
0-4
0-5
0-10
0-15
0-20
0-30
0-60
0-100
0-300
|
* These ranges available for vertical scale position only.
t These ranges use Spirahelic® gage movement.
ACCESSORIES
A-298, Flat Flush Mounting Bracket
A-309, 3-way Manifold Valve
A-314, Bleed Fitting
A-370, Mounting Bracket
A-471, Portable Kit
A-496, Flush Mount Bracket
A-610, Pipe Mount Kit
OPTIONS
Add Options as Suffix, Example 4001-ASF
- ASF (Adjustable Signal Flag)
B (Brass Case)
Scale Overlays - Red, Green, Mirrored or combination. Specify Locations
------------------------------------------------------------------------------------------------------------------------------------
