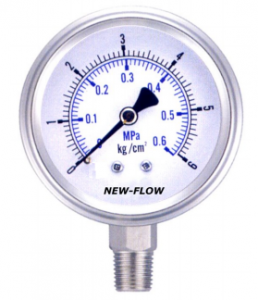

All Stainless Steel Construction Pressure Gauge

----------------------------

Manufacturer: NEW-FLOW(Taiwan)

Model: SG Series Type D - Back Connection

Technical Data:
Ranges: From -1 ~ 0 to 0 ~ 1000kg/cm³
Accuracy Class: Below 100mm+/-1.5% f.s.d; Above 100mm+/-1%f.s.d
Ambient temperature: -20⁰C to +60⁰C
Process fluid temperature: -20⁰C to +200⁰C
Working pressure: 75% f.s.d
Over pressure limit: 20% for pressure ranges.
Case: Stainless steel(AISI 304)
Socket material: Stainless steel(AISI 316)
Bourdon tube: Stainless steel(AISI 316Ti)
Movement: Stainless steel((AISI 304)
Window: Polycaronate, glass
Dial: Aluminum, white with read and black markings
Pointer: Aluminum, black, adjustable.
