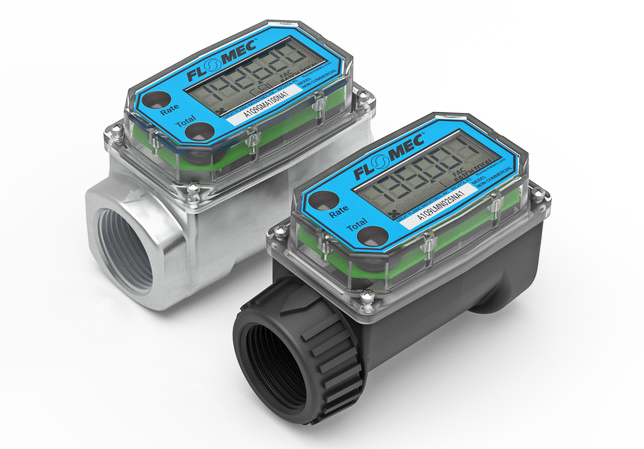

FLOMEC® A1 Series Meters are designed as self-contained, battery-powered units. Select the A1 Series when you need an accurate, basic meter.

• Available in Aluminum or Nylon
• Aluminum model is available in three sizes
• Use the Aluminum model for petroleum products
• Nylon meter for use in water or non-aggressive chemical applications
• 4-20mA Output Module available – for “SAFE AREA ONLY” models
• Pulse Access / External Power / Scaled Pulse Output Module available – for “SAFE AREA ONLY” models

FEATURES / BENEFITS

• Unique package combines Turbine and LCD into a self-contained, compact, economical meter.
• Local Display Computer features: 2 Totals (1 Resettable, 1 Cumulative); Rate of Flow and User Configuration.
• Output capabilities available to communicate with process control equipment.
• Lightweight, compact design allows for easy installation.
• Alkaline battery life: 2 years
• Factory calibration in gallons and litres (can also be eld calibrated to other fluids).

  APPLICATIONS

• Fuel Transfer
• Plant Process Water
• Batching / Blending
• Fuel Products (Aluminum model)
• Water / Non-aggressive Chemicals (Nylon model)
• Ag Chemicals
• Solvents / Glycol
• Chemical Feed Lines

A1 Series (Commercial Grade Meters)

PRODUCT IDENTIFIER:
ELECTRONIC CHOICE:
CALIBRATION:
TURBINE SIZE:
FITTING TYPE:
PACKAGING:

Application:
Fluid : ______  , Density : ____
Max. / Nor. / Min. Operating temperature C degree : ___°C / ___°C / ___ °C
Max. / Nor. / Min. Operating pressure Bar : ___ / ____/ ___Bar


• ĐẠI LÝ PHÂN PHỐI TẠI VIỆT NAM :



  CÔNG TY TNHH TM-DV-KT CAO VIỆT CƯỜNG
  83/29 Vườn Lài, Phường Phú Thọ Hòa, Quận Tân Phú, TP. HCM
  Tel: 08-3813 4681/Fax: 08-3813 4680
  Website: www.caovietcuong.com | Email: sales@caovietcuong.com



Chứng chỉ tùy chọn:

■ ATEX (Ex ia G) ■ ATEX (Ex d [ia] G) ■ IEC Ex (Ex ia G) ■ IEC Ex (Ex d [ia] G) ■ INMETRO (Ex ia G)

-Test repỏt-C/O Nhà máy-C/Q Nhà máy-C/O phòng thương mại
