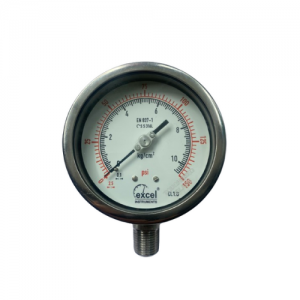

All SS (SS 304) Pressure Gauge
Bourdon type

Specifications

Đường kính mặt đồng hồ áp suất : 100 mm (4") , 115 mm (4.5"), 150 mm (6") , 200 mm (8") & 250 mm (10")

Pressure Gauge
Model            : WP4
Protection      : IP 68
Accuracy       : ±1.0% of F.S.(Accuracy ± 0.5% of F. S. for dry version)
Case              : AISI 304 SS Bayonet Type
Bourdon        : AISI 316L SS
Socket           : AISI 304 SS (Directly Welded to Case)
Movement    : AISI 304 SS
Window        : Toughened Glass
Operating pressure range : 75% of Scale Value
Scale ranges:    1  to 0 bar, -1 to 25 bar and 0/0.6  to 0/1600 bar
Standard Version : 100 mm (4") , 115 mm (4.5"), 150 mm (6") , 200 mm (8") & 250 mm (10")
Scales :  MPa, bar, psi, kg/cm2, inHg, mmHg, Kpa,


Standard followed EN 837-1 (for NS 100, 150 & 250 mm)
CE marking (as per PED 97/23/EC) (for NS 100 mm & 150 mm)

Application

 Cryogenics

 Pumps

 Hydro-cleaning machines

 Presses

 Engine compressors

 Turbines

 Pressure system.

 Diesel engines & Refrigerating plants

 Chemical & Petrochemical industries

 Conventional & nuclear power plants

CATALOGUE

SIZE 100 to 250
