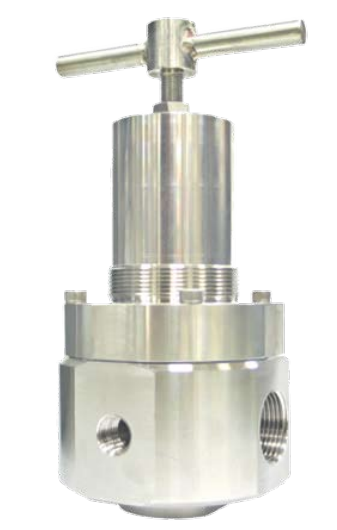

Pressure Reducing Regulator

-------------------------------

Manufacturer: NEW-FLOW(Taiwan)

Model: PRU400 Series

Technical Data:

For using gases and liquid
Inlet pressure: 1.5 Mpa maximum.
Adjustable outlet pressure in ranges:
0.01 ~ 0.2 Mpa
0.05 ~ 0.7 Mpa
Operating temperature: -5⁰C  to 60⁰C
Diaphragm material: Viton with PTFE lining
Body Material: SS316
Seat Material: PTFE
Handle wheel material: SS
Efective flow area: 13mm
CV: 2.5

------------------------------------------------------------------------------------------------------------------------------------
