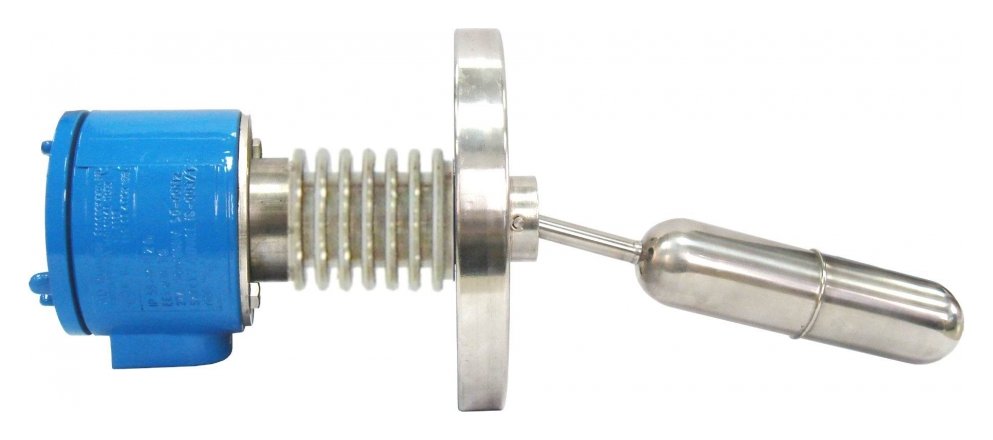

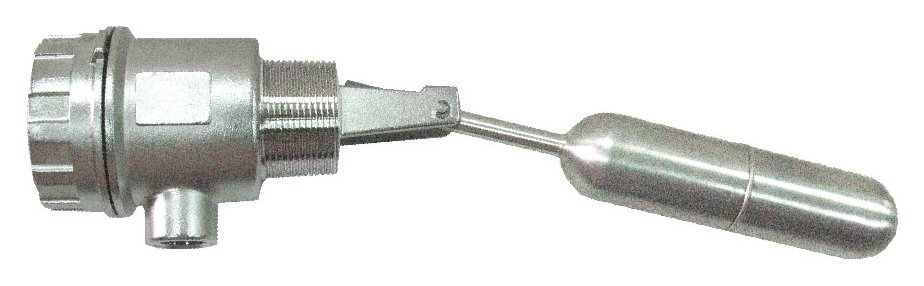

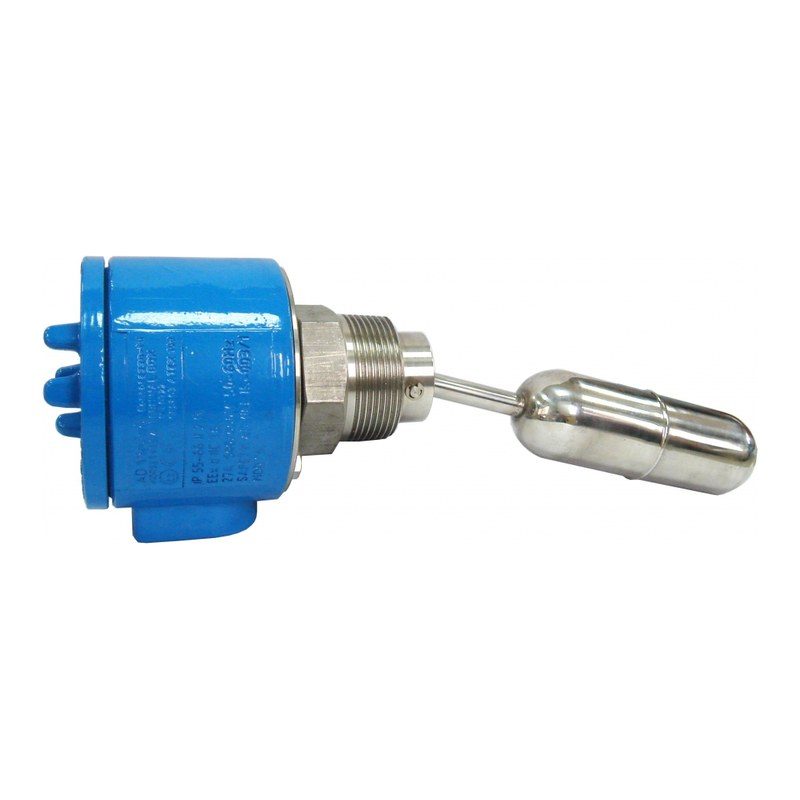

Horizontal Magnetic Level Switch Explosion Proof
----------------------------
Manufacturer: NEW-FLOW(Taiwan)
Model: LXT204 Series
Technical Data:
| Enclosure housing |
: |
Explosion proof - EEx d II C T6, IP65 |
| Process connection |
: |
1½" ~ 4" Flange type |
| Flange rating |
: |
JIS, ANSI, DIN available |
| Material |
: |
Wetted parts 316 stainless steel |
| Pressure limits |
: |
3.0 MPa (30 kg/cm²), option: up to 4.5 MPa |
| Float working specific gravity |
: |
>=0.7 (option: less than 0.7 available on request) |
| Maximum temperature |
: |
-30°C ~+ 150°C |
| Switch function |
: |
SPDT Micro switch |
| Switch rating |
: |
3A/250VAC, 3A/30VDC, 0.4A/125VDC |
| Conduit connection |
: |
1/2"NPT, 3/4"NPT female, option available |
------------------------------------------------------------------------------------------------------------------------------------
