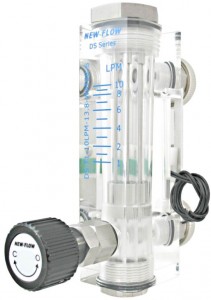

ĐỒNG HỒ ĐO LƯU LƯỢNG DS SERIES

Model                                         : DS SERIES

Manufacture                               : NEW - FLOW

Service                                         : Water, Air

Wetted parts materials                 : Body-Acrylic Plastic         O-ring-NBR, Viton Float-magnet coating with Nickel

Connecting material                     : SS316

Connecting size                             : 1/4", 3/8" NPT & 3/8" PT female available

Mounting                                        :vertical position

Temperature & pressure limits       : 150 psig (10bar) @ 100°F(38°C)



Temperature limit                           : -24°C~+54°C



Accuracy: ± 5% full scale

Alarm switch                                   : one or two setting points, form A N.O. type bistable reed switch

Switch rating                                   : AC 125V 0.5A / DC 100V 10W / Max. DC 250V<1mA

Weight                                             : 0.55~0.6kg

(Contact setting point should be within 10% to 80% of FS)



Ordering Information





Code	Needle Valve
1	With
2	Without







Code	Flow Range
A	Water
LPH	(1)2~180 (2)25~250 (3)30~300 (4)40~500
LPH	(5)0.35~3 (6)0.4~4 (7)0.5~5 (8)0.8~8
B	Air
LPM	(9)8~80 (10)10~100 (11)25~250













Code	Alarm Switch
1R	One setting point
2R	Two setting point
0	Without alarm











Code	Process Connection
A	1/4" NPT Female
B	3/8" NPT Female
C	3/8" PT Female









Code	Flow Direction
BT	Bottom to Top





------------------------------------------------------------------------------------------------------------------------------------
