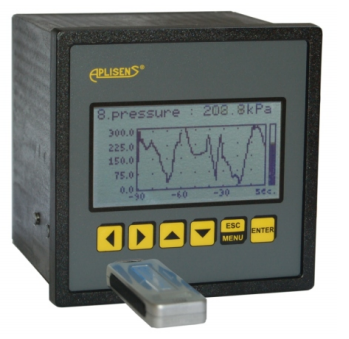

Data logger
---------
Manufacturer: Aplisens(Poland)
Model: PMS90R Series
- Up to 8 inputs 0/4 20mA or PT100/PT500/PT1000
- 1 digital input for recording release
- 2 relay outputs in standard (optoMOS)
- USB Host port for flush data storage
- RS-485 / Modbus RTU
- Power supply 19V ÷ 50V DC, 85 ÷ 260V AC
- free configuration and recording software
Features:
Specification:
Input signal Resistance signal( Pt100, Pt500, Pt1000),
Current signal ( 0/4 – 20mA)
Power supply 19 – 50V DC, 85 – 260V AC
Power consumption max. 12 VA
Measuring range ± 9999 (current inputs)
-100°C ÷ +600°C ( RTD input)
Digital input 1 input 24V DC
Internal power supply 24V DC/200mA
Communication interface RS-485 (Modbus RTU), USB Host port
Transmission speed up to 115 200bit/sec.
Memory capacity 2 MB or 8 MB (version with USB Host)
Display graphic LCD 128x64
Working temperature 0 ÷ 60 °C

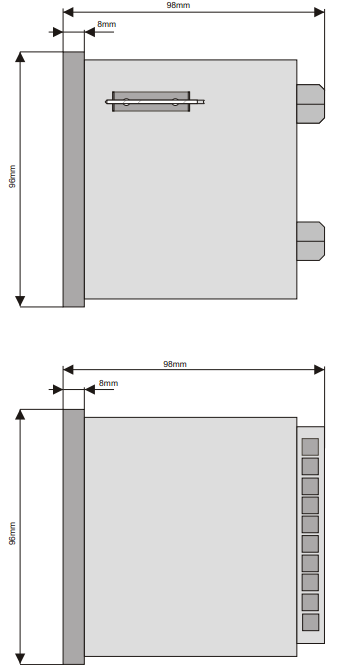

Casing dimensions 96x96x100 [mm]
2 Relay outputs 24VAC (35VDC)/200mA (ER1, ER2)
IP protection version without USB:
a) IP 40, b) IP65 ( when additional frame is installed)
version with USB:
a) IP 20, b) IP42 ( when O-90 is installed)

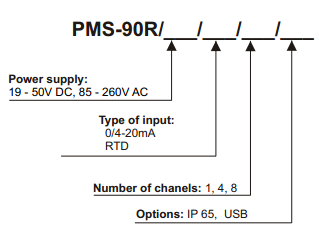

Order:
---------------------------------------------------
