The EasyTREKis an integrated, blind transmitter with equal measuring performance as the EchoTREK but readable and programmable remotely only through HART® protocol coming as standard. The two mounting options of the EasyTREK: 1½" and 2" process connections as its bottom or flanges for a mounting on the top of the tank. Its 1" threaded neck facilitates suspending it above the medium, a typical water / wastewater application

MAIN FEATURES

• 2wire integrated level transmitters
• Noncontact level measurement
• Maximum 25 m measuring range
• Narrow (5°) beam angle
• Full temperature compensation
• IP68 protection
• HART communication
• Ex version

APPLICATIONS

• For most liquids, including flammable liquids
• Open channel flow metering
• Wide application area from wastewater to aggressive chemicals
• Level measurement in basins, wells, sumps, lift-stations
• Suitable for level measurement of hydrocarbons, acids, aggressive liquids, any water based medium

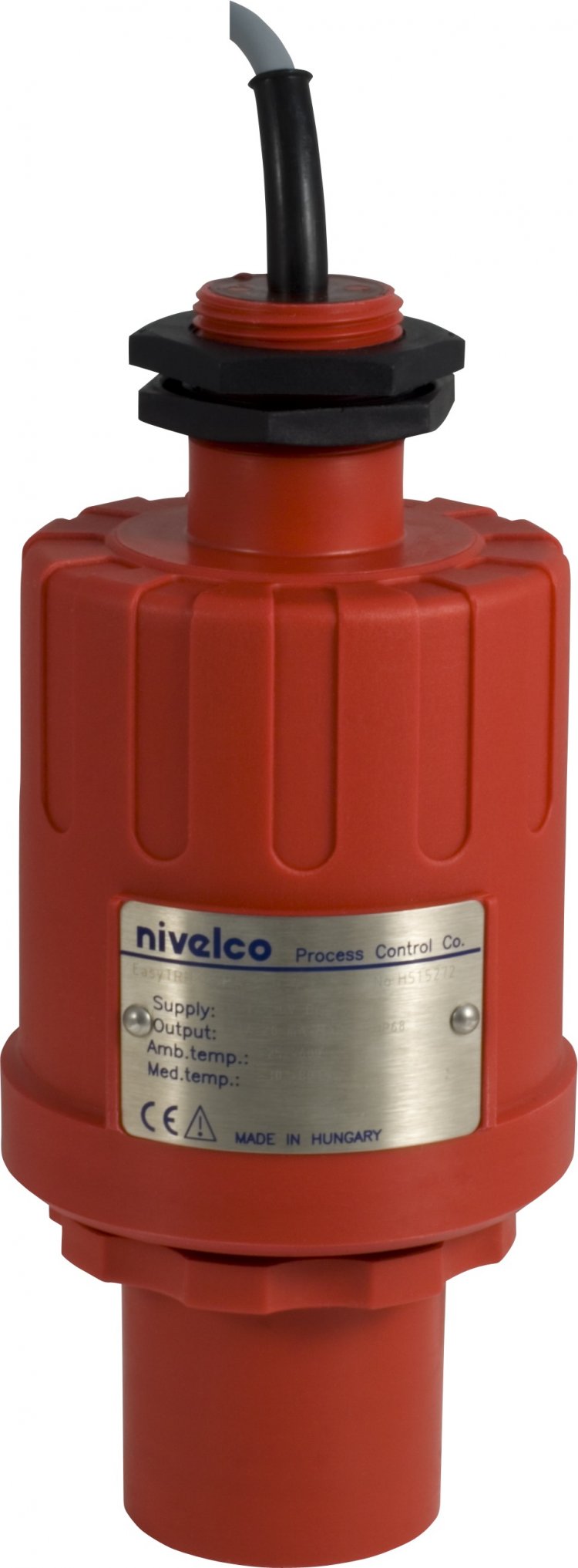

Ultrasonic intergrated level transmitters for liquid EasyTREK SP-38

Model: SPA-380-H

Brand: Nivelco

- 2-wire integrated transmitter

- Power supply: 12 – 36 V DC

- Accuracy± (0.2% of measured distance +0.05% of range)

- Ambient temperature: -30 °C ... +80 °C

- Process temperature: -30 °C ... +90 °C

- Pressure (absolute): 0.05 – 0.3 MPa (0.5 – 3 bar)

- Range: 0.25-6 m

- Frequency: 80kHz

- Transducer material: PP

- Mounting: BSP thread

- Upper process connection: 1" BSP

- Ouput: 4-20 mA + HART + Rela

- IP68 protection

ATEX (Ex ia)

INMETRO
