VA METAL TUBE Flowmeter
-------------------
Manufacturer: SMC(USA)

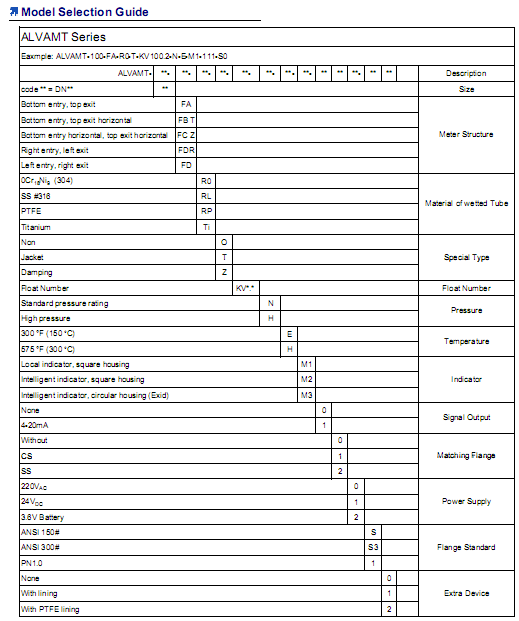

Model: ALVAMT Series
Introduction:
SmartMeasurement’s ALVAMT (commonly known as a metal tube flowmeter) is a rugged variable area meter (rotameter) that is ideal for high pressure, high temperature and other demanding flow applications where safety is a concern. Features include: globally-recognized approvals for use in hazardous environments; analog and digital LCD local display options, multiple options for process connection; several available materials of construction for metering of aggressive fluids and corrosion resistance; and HART enabled 4-20mA output to provide for remote monitoring and control.
The ALVAMT's low cost and excellent repeatability makes it a good choice for batching applications. It is also a good choice in applications where no power supply is available as versions without electronic output do not require any power. The ALVAMT's low-pressure drop provides additional value by allowing for economical pump selection.
Features:
- Excellent low-flow performance
- Versatile design may be used for gas, steam, and liquids
- Low pressure loss for gas and steam applications
- Suitable for high pressure and high temperature applications
- Turn-down ratio of 10:1
- Local indication and intelligent remote LCD display
- Easy-to-read analog pointer style indicator
- Intrinsically safe & explosion proof for hazardous area applications
Technical Data:
| Sizes |
½~8” (15 ~ 200mm) |
| Measuring Range |
Water (70 °F) – 0.007~660 GPM0 (1.6 ~ 150,000 l/h)
Air (70 °F, 14.7 psia) 3-2350 CFM (0.05 ~ 4,000 m3/h) |
| Materials |
SS #304 standard, SS #316 optional, Tantalum (flow tube), PTEE (flow tube), PTFE lining |
| Accuracy |
±1.5%(Standard), ±2.5%(PTFE liner) |
| Repeatability |
±0.5% of reading |
| Turn down ratio |
Better than 10:1 |
| Process Connections |
NPT, Flange, Wafer or Butt weld |
| Flange types |
ANSI and DIN |
| Temperature |
Standard (E) 392 °F (200℃) max.
PTFE: 185 °F (85℃) max
High temperature (H): 575 °F (300℃) |
| Pressure |
Standard: 232 psig (1.6Mpa); DN65 - DN150, 580 psig (4.0Mpa); DN15 - DN50
High: 365 psig (2.5Mpa); DN65 - DN150, 930 psig (6.4Mpa); DN15 - DN50 |
|
|
| Pressure Loss |
1-2.25 psid (6.5 ~ 15.6 Kpa) |
| Viscosity |
½” ~ ¾”- < 30 CP, 1” ~ 1½”- < 250 cP, 2” ~ 8” - < 300 cP |
| Signal Output |
4-20mA (2-wire) |
| Alarms |
High / Low limit alarm, maximum 1A @ 24VDC |
| Weight |

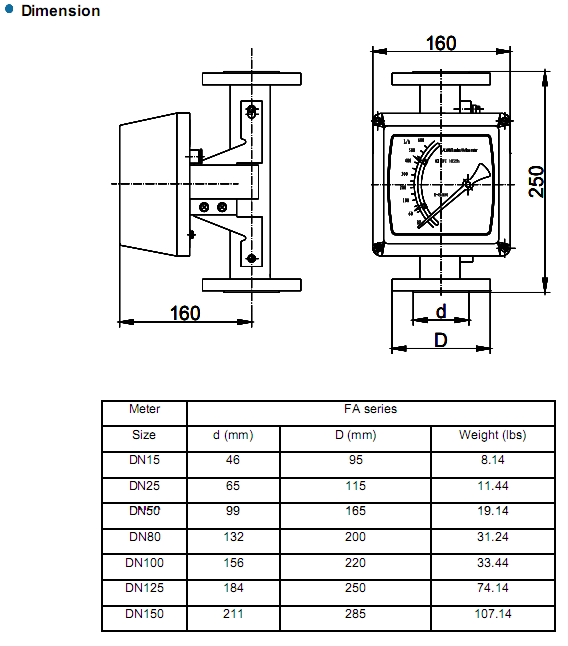

8-107 lbs (3.7-48.7 Kg) - see catalog for specific weights |
| Approvals |
Isolation: Exd Ⅱ CT5, Intrinsic Safety: ExiaⅡC |
| Digital Display |
Rate 0 ~ 50000
Total: 0 ~ 99999999 (with decimal) |
| Power supply |
85~264VAC 50-60 Hz, 24VDC, 3.6VDC @ 5.2 Amp Hours (Lithium) |
|
------------------------------------------------------------------------------------------------------------------------------------
