Ultrasonic Flowmeter
-------------------
Manufacturer: SMC(USA)
Model: ALSONIC-DPL Series
Introduction:
SmartMeasurement's ALSONIC-DPL series is a portable ultrasonic flowmeter with clamp-on transducers for non-invasive liquid flow measurement. The ALSONIC-DPL’s transit-time principle with advanced DSP and Multipulse technology makes it ideal for measuring fluid with higher concentrations of bubbles & suspended solids. . Our microprocessor based, user friendly, field programmable flow measurement technique allows no interruption of the process flow with lower installation costs versus other flowmetering techniques.
Features:
- Advanced DSP and Multi-pulse Technology
- Integal 4 line back-lit display combined with a rugged, watertight enclosure
- Internal 7200 mAH battery provides up to 42 hours of use; 220VAC or solar recharging
- 4-20 mA, OCT pulse (flow rate or total flow) outputs standard
- Available with Pulse, Relay, RS232C or RS485, Hart +(4~20mA), Modbus outputs
- Transducers for pipe sizes ranging from ½” to 180” (12 to 4570 mm)
- ±1.0% of reading accuracy at flow rates > 0.5 m/s; ±0.003 m/s of reading at rates<0.5 m/s
- Optional heat flow BTU function, two RTDs inputs allow display of inlet and outlet temperature, heat flow rate, and total heat flow
- Available SD card data logger function allows up to 8Gb of storage
- Response time of less than 1 second
- NIST traceable calibration certificate
Technical Data:
| Measuring Principle |
Ultrasonic with multipulse DSP |
| Transducers |
S : 12 mm ~ 50 mm (1/2" ~ 2")
M: 40 mm ~ 1000 mm (2" ~ 38")
L: 1000 mm ~4570 mm (38" ~ 200")
K: 12 mm ~ 50 mm (1/2" ~ 2") |
| Temperatures |
Std -40 ~ 121 °C
High Temp -40 ~ 250 °C |
| Pipe Material |
Cast Iron, Stainless Steel, Ductile Iron Copper, PVC, Aluminum, Asbestos Fiberglass, etc. |
| Approvals |
CE & ATEX |
| Measured fluid |
Any liquid containing less than 2% total suspended solids (TSS) or aeration |
| Engineering Units |
User Configurable (English or Metric) |
| Display Parameters |
Total, Rate and Velocity Display (FWD, NET, REV or BATCH) Velocity, Date, Time, Signal condition. |
| Flow sensitivity |
0.001f/s (0.0003m/s) |
| Accuracy |
±0.5 -1.0% of reading at rates >0.5 m/s
±0.005 m/s of reading at rates<0.5 m/s |
| Repeatability |
±0.2% of reading |
| Resolution |
0.001f/s (0.0003m/s) |
| Response Time |
Less than 1 second |
|
|
| Fluid Velocity |
0 ~± 40 ft/s (0 ~ ±12m/s), bi-directional |
| Ambient Temperature |
-5 ~ 122 °F (-20 ~ +50 °C) |
| Ambient Humidity |
90% RH or Less |
| Built-in battery |
Internal 7.2AHbattery |
| Charger |
220VAC±15%, Solar energy |
| Data Storage |
512M to 8Gb SD card |
| Software |
Windows-based with utility reports, data logging software various reports, curves and analysis |
| Data Logger |
Portable with SD card, connected by RS232 |
| Security |
Keypad lockout, access code enable |
| Alarm |
Various user friendly relays |
| Dimensions/Weight |
Transmitter: 445 x 290 x 130 mm; Weight: <3.5kg
"S" Transducer: 42 x 25 x 25 mm; weight: <0.3kg
"M" Transducer: 60 x 43 x 43mm; weight: <0.6kg
"V" Transducer: 80 x 53 x 53mm; weight: <1.0kg |
| Dimensions |
9.25" x 8.07" x 3.75" |
| Weight |
3.3 lbs |
| Protection |

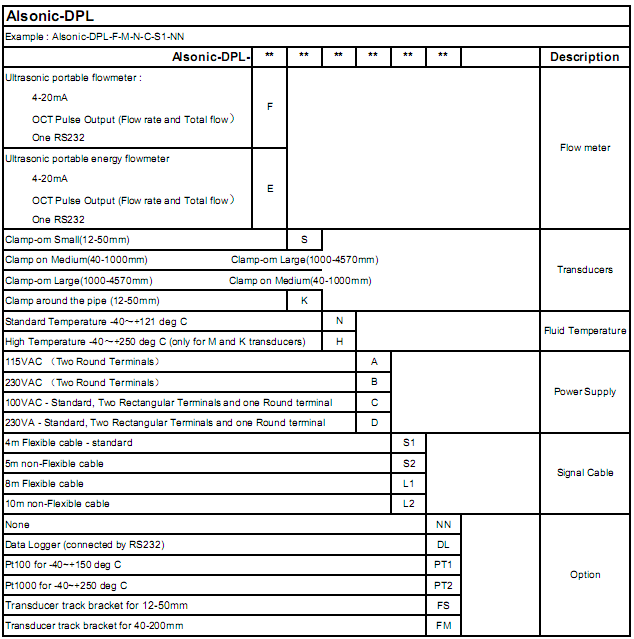

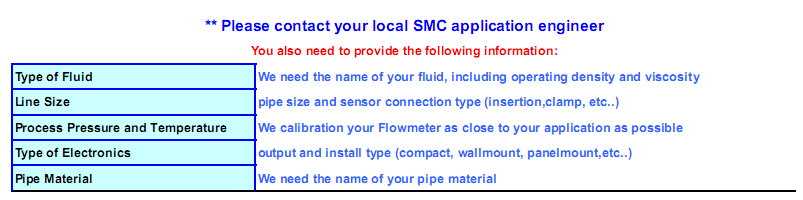

IP 65 (Converter), IP68 (Sensor) |
|
------------------------------------------------------------------------------------------------------------------------------------
