Ultrasonic Flowmeter
-------------------
Manufacturer: SMC(USA)

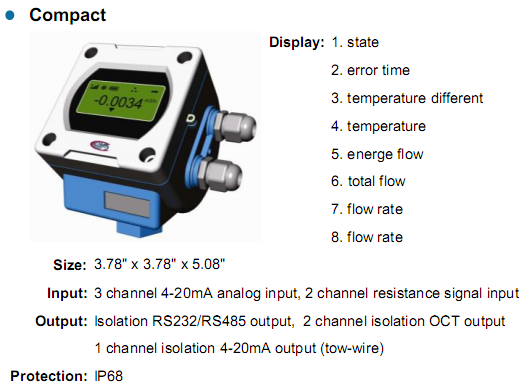

Model: ALSONIC-FX Series(Compact)
Introduction:
The ALSONIC-FX series is a fixed-mount, low cost transit-time ultrasonic flowmeter with clamp-on transducers for non-invasive liquid flow rate measurement. Our microprocessor-based, user friendly field programmable creates no interruption of the process flow and has low installation costs.

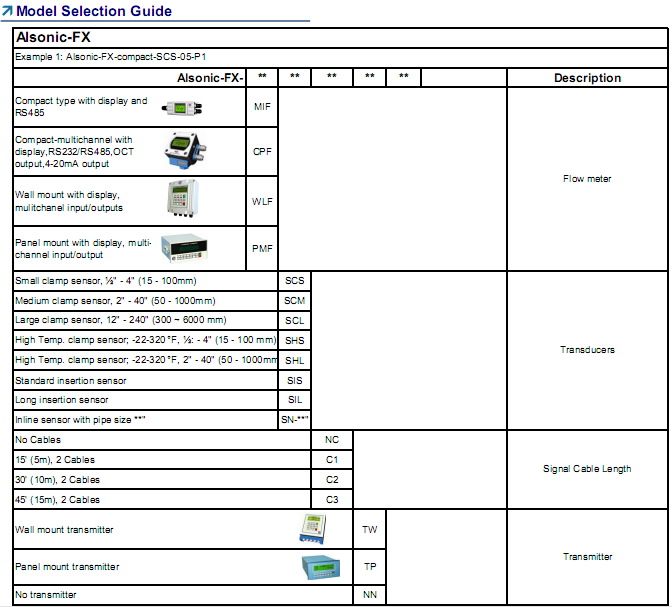

This versatile series of flow meters is available in a variety of configurations. Available transucer types include clamp-on, in-line, and insertion. Wall-mount, panel-mount , pipe-mounted and compact din-rail mounted display types are also offered. Additional available features include pulse, 0-20 mA & 4-20 mA outputs, RS-232 communication, user-selectable engineering units, and a data logger function.
Features:
Technical Data:
| Measuring Principle |
Transit time difference |
| Pipe Size |
S Type : ½" ~ 4" (15 mm ~ 100 mm)
M Type : 2" ~ 28" (50 mm ~ 700 mm)
L Type : 12" ~ 240" (300 mm ~ 6000 mm) |
| Pipe Material |
Cast Iron, Stainless Steel, Ductle Iron Copper, PVC, Aluminum, Asbestos Fiberglass, etc. |
| Liner Material |
Tar Epoxy, Rubber, Mortar, Polypropylene, Polystryal, Ploystryene, Polyester, Ebonite, Polyethylene, Teflon, etc. |
| Display |
2 Line LCD with backlight; 5 digits with decimal point for flow rate, 8 digits for Forward, Reverse & Net totalized values |
| Engineer Unit |
M3, Liter, US gallon, Imperial gallon, Million gallons, Cubic feet, US Barrels, Imperial barrels, Oil barrels |
| Time Units |
Second, Minute, Hour, Day |
| Accuracy |
± 1% ~ ± 2% of reading (1.5 ~ 100 feet/sec.)
± 0.5% of reading (online calibration) |
| Repeatability |
± 0.2% of reading |
| Keypad |
16 Key with tactile action |
| Response Time |
Less than 1 second |
|
|
| Fluid Velocity |
0.03 ~ ± 105 feet/sec. |
| Resolution |
0.0001 m/s |
| Ambient Temperature |
-5 ~ 122 °F (-20~60 °C) |
| Mounting |
wall mounting, panel, local |
| Max. Cable Length |
500’ (150 m) |
| Power Consumption |
Less than 2W |
| Power Supply |
90 ~ 260VAC 50/60 Hz |
| Data Storage |
Operation parameters and totalization data are stored in EEPROM for more than 10 years |
| Analog Output |
4-20 mA or 0-20 mA |
| Pulse Output |
1~9999 Hz |
| Data Logger |
64 data points including flowrate, totalizer, time, & date |
| Alarm |
High/Low with buzzer |
| Communication |
RS-232 |
| Dimensions |
9.25" x 8.07" x 3.75" |
| Weight |
3.3 lbs |
| Protection |
IP 65 (Converter), IP68 (Sensor) |
|
------------------------------------------------------------------------------------------------------------------------------------
