RF Capacitance Level Sensors
-------------------
Manufacturer: Monitortech(USA)
Model: MK2 Series(Standard Probe)
Introduction:
TrueCap® RF capacitance sensors offer cost-effective point level monitoring with reliability you can count on. Monitor’s complete line, which features models MK-2 and MK-2e, provides you with the most affordable solution for your application. Monitor’s RF capacitance probes are designed to provide a high level of sensitivity, stability and durability for powder and bulk solids applications, as well as liquid and slurry applications. Monitor’s two-year warranty stands behind every TrueCap sensor
Features:
The TrueCap® Model MK-2 RF capacitance point level sensor is a proven problem solver used to ensure maximum performance and reliability, minimizing downtime of operations.
-
Microcontroller based for maximum reliability & performance
-
Push-button calibration, sensitivity selection & self-test
-
Automatic temperature compensation for unmatched calibration stability
-
Superior 0.5 pF sensitivity ensures reliability
-
Build-up immunity helps eliminate false signals
-
High intensity LED indicating light (Ordinary location sensors only)
-
Universal power supply minimizes versions
-
Available hazardous location approvals with intrinsic safety
Technical Data:
|
Power:
|
48-240VAC ±10%, 3VA, 50/60Hz
24-48VDC ±10%, 3W
|
|
Altitude:
|
6562ft (2000m) max
|
|
Installation Category:
|
II
|
|
Pollution Degree:
|
4 (reduced to 2 by enclosure) Suitable for indoor/outdoor use
|
|
Ambient Operating Temp:
|
-40°F (-40°C) to +150°F (65°C)
|
|
*Internal Bin Temp:
|
To +176° F (+80° C) w/alum. mount (<104° F (40° C) ambient)
To +400° F (+204° C) w/SS mount (<122° F (50° C) ambient)
|
|
Output Relay:
|
DPDT, 5A @ 250VAC, 30VDC maximum
|
|
IIndicators:
|
“DET” yellow LED illuminates when material is sensed
“ OPR” red LED illuminates to indicate output switching
“ CAL” green LED illuminates to indicate proper calibration
“ SEN” bank of four LEDs indicated the sensitivity setting
|
|
External Indicators:
|
Red and green LEDs indicating power and operating mode (Ordinary location units only)
|
|
Sensitivity:
|
Switch selectable 0.5pf, 2.6pf, 8.3pf, 18.0pf
|
|
Stability:
|
±0.01pf per degree F (±0.018pf per degree C) @ 0.5pf setting
|
|
Time Delay:
|
0.25 to 15 sec single-turn adjustable for delay to activate and delay to de-activate
|
|
Fail-Safe:
|
Switch selectable - HI/LO
|
|
Build-Up Immunity:
|
Protected via driven shield to 150 ohm load
|
|
Enclosure:
|
Cast alum screw-on cover, beige polyester pwdr coat, NEMA 4, IP66
|
|
Conduit Connection:
|
Two (2) 3/4” NPT connections (M20 cable glands provided when 1-1/2” BSPT process connection is specified)
|
|
**Approvals:
|
CSA(US) CSA(C) Ordinary Locations, CE Mark(Ordinary location only)
CSA(US) CSA(C): Class I Groups C & D, Exp. Proof & Intrinsically Safe
CSA(US) CSA(C): Class II Group E, F & G, Dust Ignition Proof & Intrinsically Safe
|

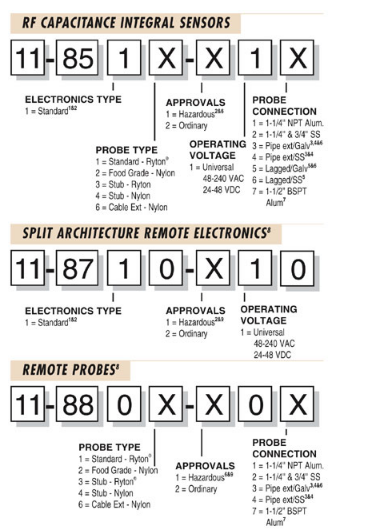

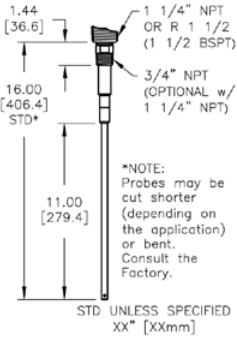

Probe Specifications
|
Mounting:
|
1-1/4” NPT alum, R 1-1/2 (BSPT 1-1/2), or combo 3/4” NPT 316SS and 1-1/4” NPT alum
|
|
Probe Material:
|
3/8in(9.5mm) dia. 316SS probe & guard, Ryton® & Nylon insulators
|
|
Probe Length:
|
16in (406mm) from alum mounting
|
|
Temp (Probe Only):
|
Ryton® +450° F (+232° C) max; Nylon +300° F (+148° C) max
|
|
Pressure:
|
50 psi (3.5 bar) max (alum connection);
150 psi (10 bar) max (3/4” NPT SS)
|
------------------------------------------------------------------------------------------------------------------------------------
