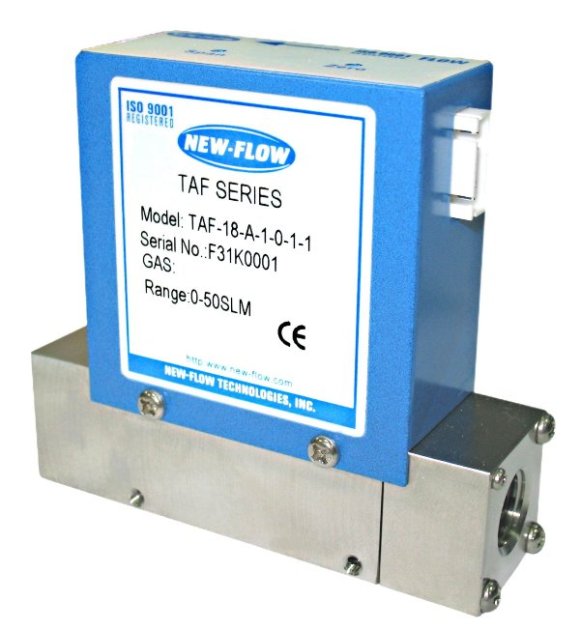

Mass Flow Meter
without LCD Display
------------------------------------
Manufacturer: New-Flow(Taiwan)
Model: TAF Series
Technical Data:
Wetted Material: Standard flowbody - SS316; O-ring - Viton.
Output Signal: 0-5 VDC Linear min. load 1000 Om.
Input Power: 24VDC, 15VDC, 12VDC available.
Turn Down Ratio: 50:1.
Repeatability: +/-0.15% FS or better.
Electric Connection: 5 Pin post header.
Process connection: 1/4" NPT female.
Range:0-10 SCCM to 0-50 SLM
Minimum Pressure: 40" H2O.
Max Pressure: 500 PSIG.
Respone Time: 1 second.
Weight: app 0.5kg.
Demension:
------------------------------------------------------------------------------------------------------------------------------------
