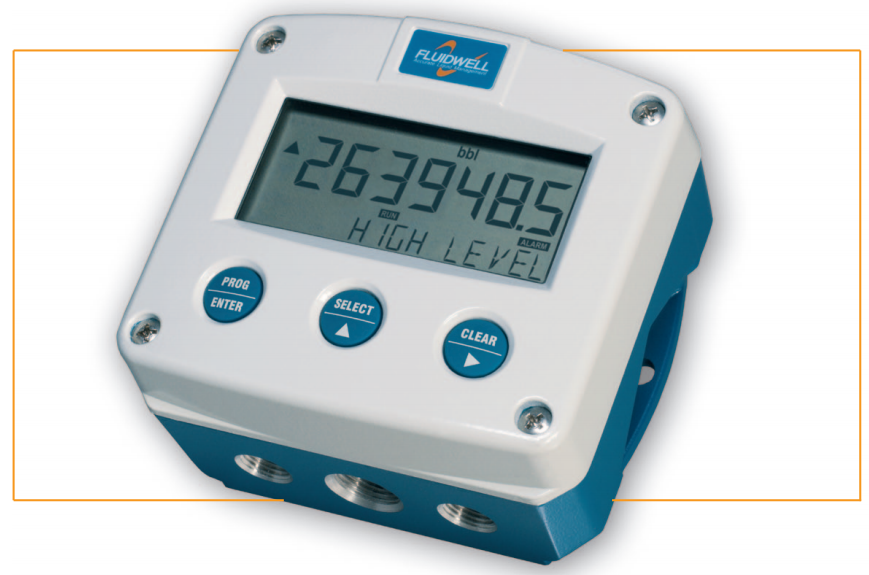

Level monitor with one high / low alarm output

-------------------

Manufacturer: Fluidwell(USA)

Model:  F073 Series

            The F073 is a versatile level monitor with continuous level monitoring feature. It offers the facility to set one low level and one high level alarm value. If desired, an ignore functi-on can be set up to allow for an incorrect level for a certain period of time. A wide selection of options further enhances the capabilities of this model, including Intrinsic Safety

Features

• Displays level, height and percentage filled.
• Two alarm values can be entered: low and high level alarm.
• Large 17mm (0.67") digits.
• Selectable on-screen engineering units; volumetric or mass.
• Operational temperature -40°C up to +80°C (-40°F up to 176°F).
• Red flashing LED backlight in case of a level alarm.
• Very compact design for panel mount, wall mount or field mount applications.
• Rugged aluminum field mount enclosure IP67/NEMA4X.
• Intrinsically Safe - ATEX, IECEx, FM and CSA approval for gas and dust applications.
• Explosion/flame proof II 2 GD EEx d IIB T5.
• Loop or battery powered, 8 - 24V AC/DC or 115 - 230V AC power supply.

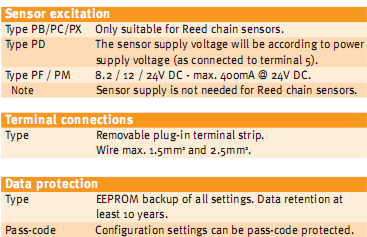

• Sensor supply 8.2 / 12 / 24V DC.

---------------------------------------------------
