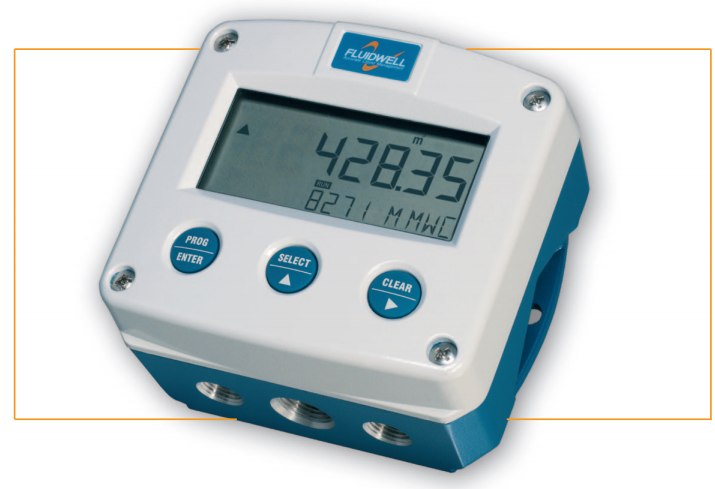

Level monitor with linearisation and one high / low alarm output

-------------------

Manufacturer: Fluidwell(USA)

Model:  F077 Series

            The F077 is a versatile level monitor with linearisation and continuous level monitoring feature. In addition to the average Span, eight linearisation points can be entered to compensate for the tankshape. The unit will interpolate between these points to increase the accuracy. This linearisation effects all displayed information as well as the alarm output. With the level monitoring featue, one low level and one high level alarm value can be set. A wide selection of options further enhances the capabi-lities of this model, including Intrinsic Safety.

Features

• Displays level, height and percentage filled.
• Eight point linearisation of the tank shape - with interpolation.
• Two alarm values can be entered: low and high level alarm.
• Red flashing LED backlight in case of a level alarm.
• Large 17mm (0.67") digits.
• Selectable on-screen engineering units; volumetric or mass.

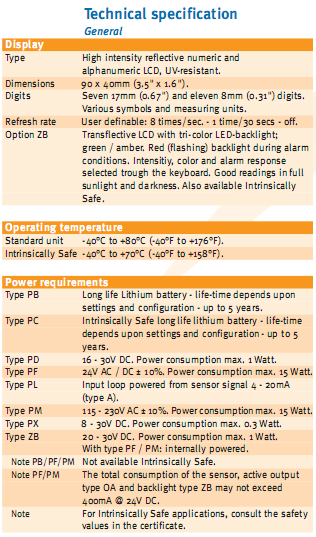

• Operational temperature -40°C up to +80°C (-40°F up to 176°F).
• Very compact design for panel mount, wall mount or field mount applications.
• Rugged aluminum field mount enclosure IP67/NEMA4X.
• Intrinsically Safe - ATEX, IECEx, FM and CSA approval for gas and dust applications.
• Explosion/flame proof II 2 GD EEx d IIB T5.
• Loop or battery powered, 8 - 24V AC/DC or 115 - 230V AC power supply.

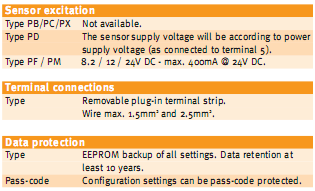

• Sensor supply 8.2 / 12 / 24V DC.

---------------------------------------------------
