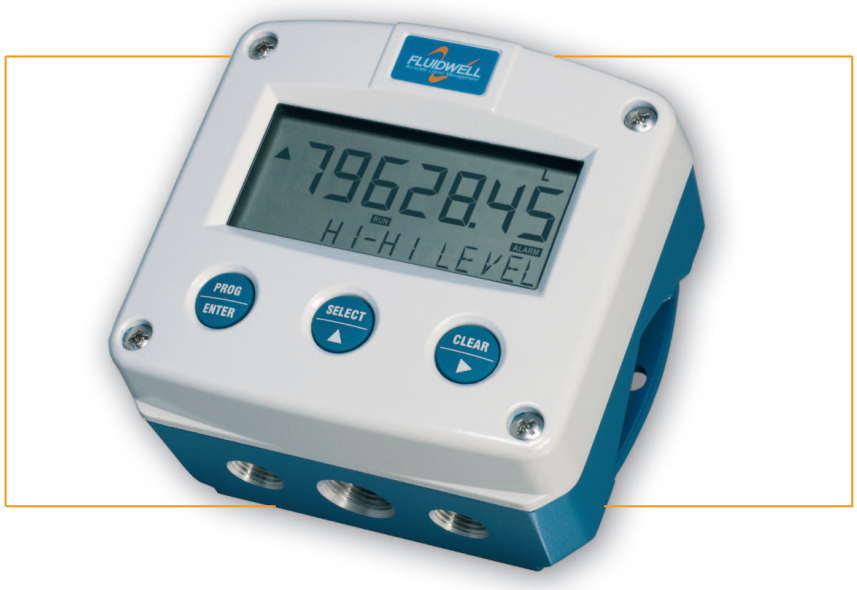

Level monitor with linearisation, analog and high / low alarm outputs

-------------------

Manufacturer: Fluidwell(USA)

Model:  F173 Series

            The F173 is a versatile level indicator with linearisation and continuous level monitoring feature. It offers the facility to set two low level and two high level alarm values. If desired, an ignore function can be set up to allow for an incorrect level for a certain period of time. Up to four outputs are available to transmit the alarm condition. A wide selection of options further enhances the capabilities, including Intrinsic Safety and full Modbus communication.

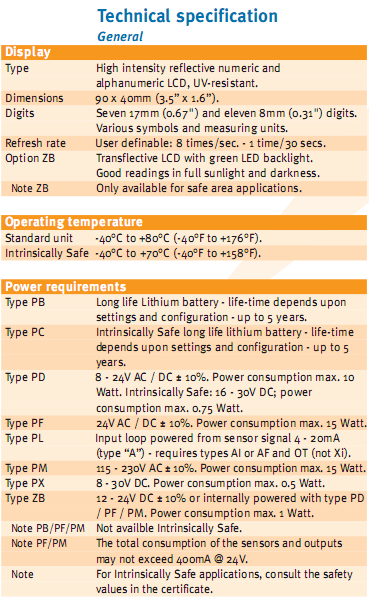

Features

• Displays level and percentage filled.
• 15 point linearisation of the tank shape - with interpolation.
• Four alarm values can be entered: low-low, low, high and high-high level alarm.
• Large 17mm (0.67") digits.
• Selectable on-screen engineering units; volumetric or mass.
• Operational temperature -40°C up to +80°C (-40°F up to 176°F).
• Very compact design for panel mount, wall mount or field mount applications.
• Rugged aluminum field mount enclosure IP67/NEMA4X.
• Intrinsically Safe - ATEX and IECEx approval for gas and dust applications.
• Explosion/flame proof  II 2 GD EEx d IIB T5.
• Alarm and analog signal outputs.
• Full Modbus communication RS232/485/TTL.
• Loop or battery powered, 8 - 24V AC/DC or 115 - 230V AC power supply.

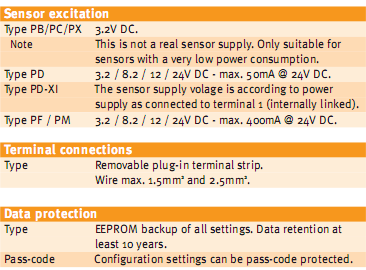

• Sensor supply 3.2 / 8.2 / 12 / 24V DC.

---------------------------------------------------
