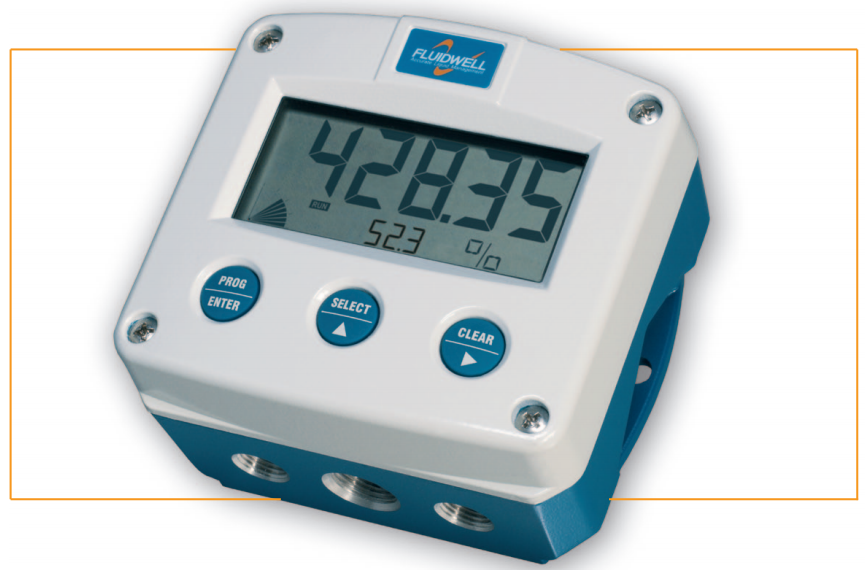

Level indicator with very large digits

-------------------

Manufacturer: Fluidwell(USA)

Model:  F070 Series

            The F070 is is a straight forward level indicator. The measuring unit to be displayed is simply selected through an alfa-numerical configuration menu. No adhesive labels have to be put on the outside of the enclosure: a weather proof and user friendly solution! The configuration of the Span, off-set and number of decimals is done through software functions, without any sensitive dip-switches or trimmers. A wide selection of options further enhances the capabilities of this model, including Intrinsic Safety for hazardous area applications.

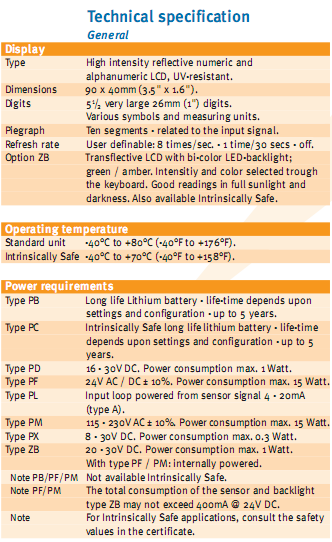

Features

• Displays level and height or percentage filled.
• Very large 26mm (1") digits.
• Piegraph indication: ten segments.
• Number of digits for level: 51/2.
• Selectable on-screen engineering units; volumetric or mass.
• Operational temperature -40°C up to +80°C (-40°F up to 176°F).
• Very compact design for panel mount, wall mount or field mount applications.
• Auto backup of all settings.
• Rugged aluminum field mount enclosure IP67/NEMA4X.
• Intrinsically Safe - ATEX, IECEx, FM and CSA approval for gas and dust applications.
• Explosion/flame proof II 2 GD EEx d IIB T5.
• LED backlight option.
• Loop or battery powered, 8 - 24V AC/DC or 115 - 230V AC power supply.

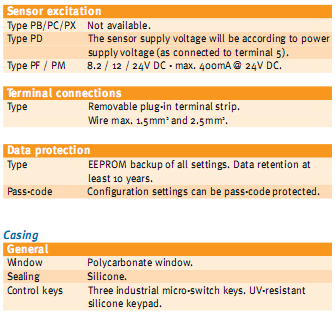

• Sensor supply 8.2 / 12 / 24V DC.

---------------------------------------------------
