General purpose indicator loop powered with very large digits

-------------------

Manufacturer: Fluidwell(USA)

Model:  F090 Series

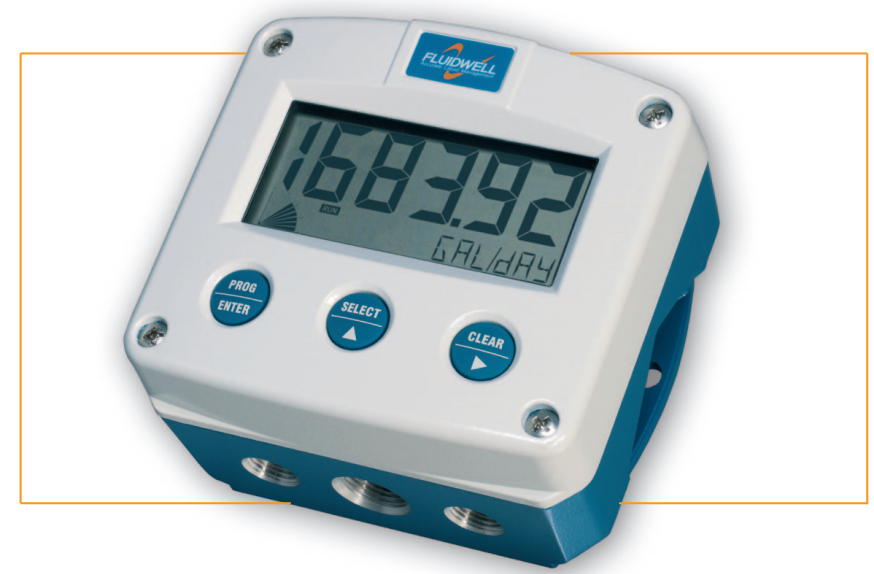

            The F090 is a local indicator to display the actual process value, range and loop current. The measuring unit to be displayed is simply selected through an alfa-numerical configuration menu. No adhesive labels have to be put on the outside of the enclosure: a weather proof and user friendly solution! The configuration of Span, offset and number of decimals is done through software functions, without any sensitive dip-switches or trimmers. A wide selection of options further enhances the capabilities of this model, including Intrinsic Safety for hazardous area applications.

Features

• Universal loop powered indicator.
• Very large 26mm (1”) high digits.
• Displays the actual value, measuring unit and loop current.
• Selectable on-screen engineering units: %, PPM, meter, m, cm, mm, ft, sqft, ML, L, NL, M3, nM3 , GAL, USGAL, IGAL, bbl, CUFT, mg, g, kg, ton, lb, psi, psig, mbar, bar, barg, °C, °F, K, P, RPM, K, KPA, pH, mV, /sec, /min, /hr, /day or no unit (others on request).
• Piegraph indication: ten segments.
• Number of digits: 51 /2.
• Green/amber LED backlight with adjustable intensity.
• Operational temperature -40°C to +80°C (-40°F to 176°F).
• Environmental protection to IP67 (NEMA4X).
• Intrinsically Safe - ATEX, IECEx, FM and CSA approval for gas and dust applications.

---------------------------------------------------
