DR LCD

-------------------

Manufacturer: Macnaught(Australia)

Model:  DRA Series

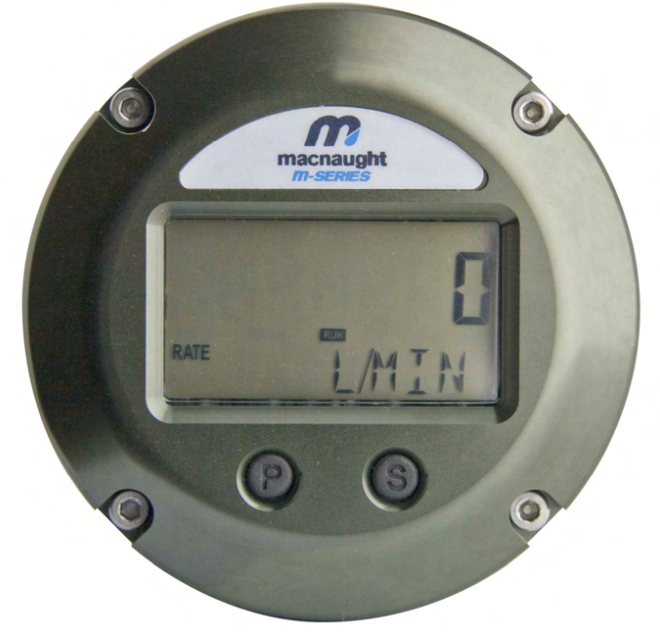

      DRA Digital meter mounted LC display

      This register has a high intensity reflective numeric and alphanumeric LCD, with a tough aluminium body and IP67 environmental protection.

Features

Specification:

• 7 x 12 mm (0.47”) & 7 x 8 mm (0.31”) digit LCD
• 2 x resettable & 1 non-resettable totals
• selectable flow rate display
• backup of settings & totals - flash memory
• 0000.001 - 9,999.999 (K Factor)
• operational temperature: -20°C to +60°C (-4°F to +140°F)
• long life 3V lithium battery (up to 3 years)

Option:

• passive 4-20 mA output (output powered loop)
• min. operating voltage: 8V DC
• 18-30V DC power supply
• one scaled pulse output
• high & low flow rate alarm output
• passive transistor output (isolated); load max. 50V DC - 100mA
• isolation - 100V DC max.

---------------------------------------------------
