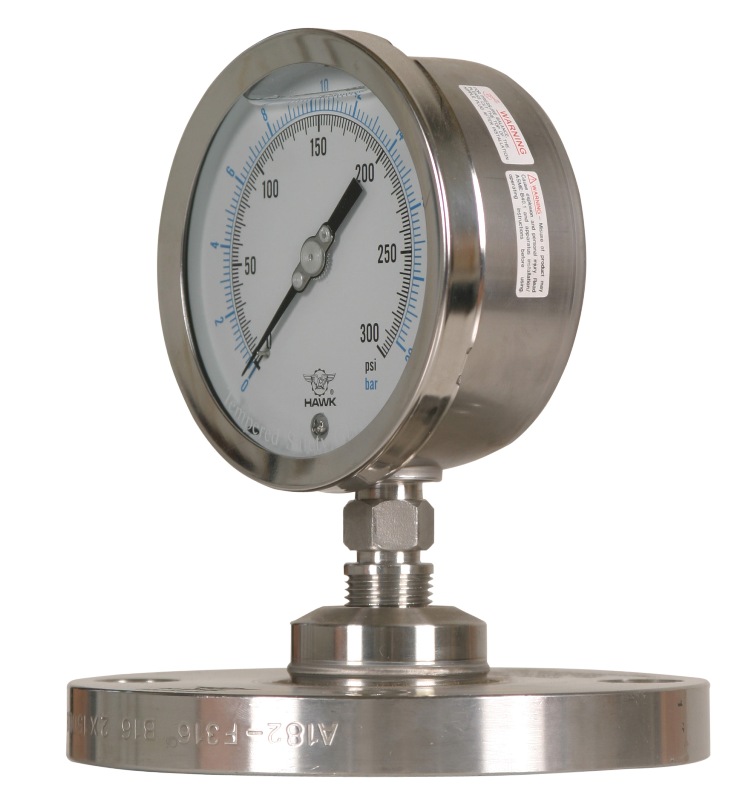

PRESSURE GAUGE C/W DIAPHRAGM SEALS
| Code |
Pressure Range |
| C21 |
0/1 Kg/cm2 & psi |
| C22 |
0/2 Kg/cm2 & psi |
| C25 |
0/4 Kg/cm2 & psi |
| C27 |
0/10 Kg/cm2 & psi |
| C29 |
0/16 Kg/cm2 & psi |
| C32 |
0/25 Kg/cm2 & psi |
| C34 |
0/40 Kg/cm2 & psi |
| C41 |
0/60 Kg/cm2 & psi |
| C441 |
0/100 Kg/cm2 & psi |
| C46 |
0/160 Kg/cm2 & psi |
| C46 |
0/250 Kg/cm2 & psi |
| C48 |
0/400 Kg/cm2 & psi |
| C52 |
0/1000 Kg/cm2 & psi |
| C53 |
0/1400 Kg/cm2 & psi |
| Code |
Pressure Range |
| CV2 |
-76 cmHg to 0 Kg/cm2 |
| CC1 |
-1 to +1 Bar/psi |
| CC31 |
-1 to +5 Bar/psi |
| CC41 |
-1 to +9 Bar/psi |
| CC7 |
-1 to +15 Bar/psi |
| CC8 |
-1 to +24 Bar/psi |
| CC9 |
-1 to +35 Bar/psi |
DIAPHRAGM SEAL (CHEMICAL SEAL)
Model : 224
Temperature Limit: -50 to 300 Degree C
Diaphragm Material:
- SS 316L
- 304SS
- Monel
- Hastelloy C
- Nickel
- Titanlum
Process Flange Rate:
- ANSI 150 LB, ANSI 300LB, ANSI 400LB, ANSI 600LB, ANSI 900 LB, ANSI 1500LB
- DIN 10-40 , PN 64, PN 100, PN 250, PD 320, PD400
- JIS PN 10K, PN 20K, PN 40K, PN 63K
Process Flange Size:
- DN10, DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100
- 2/5" , 1/2", 3/4", 1", 11/4", 2", 2 1/2", 3", 4", 5"
Process Flange Face:
- RF
- MFM
- TG
- FF
- RJ
- RFSF
Sealing Liquid :
- Silicon Oil
- Silicon Oil for high temp
- Glycerine
- Water and Glycerine
- Mineral Oil
------------------------------------------------------------------------------------------------------------------------------------
