Mô tả sản phẩm
Đồng Hồ Đo Chênh Áp Series 4000
| Model | : | SERIES 4000 |
| Manufacturer | : | DWYERS |
| Origin | : | USA |
| Service | : | Aluminum case: Air and compatible gases and oil based liquids; Brass case: Air and compatible gased and water based liquids. |
| Wetted Materials | : | Consult factory. |
| Housing | : | Die cast aluminum with impregnated hard coating, standard. Optional forged brass housing is required for water or water based fluids. Special material diaphragms available, contact factory. |
| Accuracy | : | ±3% of full scale at 70°F (21.1°C). (±2% on 4000S models, ±4% on 4200, 4210, 4215, 4220, 4300, 4400, and 4500). |
| Pressure Limits | : | -20" Hg to 500 psig. (-0.677 bar to 34.4 bar). |
| Temperature Limits | : | 20 to 200°F (-6.67 to 93.3°C) |
| Size | : | 4" (101.6mm) diameter dial face. |
| Mounting Orientation | : | Diaphragm in vertical position. Consult factory for other position orientations. |
| Process Connections | : | 1/4" female NPT high and low pressure taps, duplicated - one pair top for air and gas, and one pair bottom for liquids. |
| Weight | : | 3 lb, 3 oz (1.45 kg) aluminum case; 7 lb, 13 oz (3.54 kg) brass case. |
| Standard Accessories | : | Two 1/4" NPT plugs for duplicate pressure taps, four flush mounting adapters with screws and four surface mounting screws. |
Scales reading directly in flow, heights,etc., are also available.
| Model | Range, Inches of Water | Model | Range Zero Center Inches of Water |
| *4000-0 *4001 *4002 *4003 *4004 *4005 *4006 *4008 *4010 *4015 *4020 *4025 *4030 *4040 *4050 *4060 *4080 *4100 *4150 *4200 *4300 *4400 *4500 |
0-.50 0-1.0 0-2.0 0-3.0 0-4.0 0-5.0 0-6.0 0-8.0 0-10 0-15 0-20 0-25 0-30 0-40 0-50 0-60 0-80 0-100 0-150 0-200 0-300 0-400 0-500 |
*4302 *4304 4310 4320 4330 |
1-0-1 2-0-2 5-0-5 10-0-10 15-0-15 |
| Model | Range PSID | ||
| 4201 4202 4203 4204 4205 4210 4215 4220 t4230S t4260S t42100S t42300S |
0-1 0-2 0-3 0-4 0-5 0-10 0-15 0-20 0-30 0-60 0-100 0-300 |
* These ranges available for vertical scale position only.
t These ranges use Spirahelic® gage movement.
ACCESSORIES
A-298, Flat Flush Mounting Bracket
A-309, 3-way Manifold Valve
A-314, Bleed Fitting
A-370, Mounting Bracket
A-471, Portable Kit
A-496, Flush Mount Bracket
A-610, Pipe Mount Kit
OPTIONS
Add Options as Suffix, Example 4001-ASF
- ASF (Adjustable Signal Flag)
B (Brass Case)
Scale Overlays - Red, Green, Mirrored or combination. Specify Locations
------------------------------------------------------------------------------------------------------------------------------------
ĐẠI LÝ PHÂN PHỐI CHÍNH THỨC TẠI VIỆT NAM | CÔNG TY TNHH TM-DV-KT CAO VIỆT CƯỜNG
Số 89 hẻm 249 Tân Kỳ Tân Quý, P.Tân Sơn Nhì, Q.Tân Phú, HCMC
Tel: 08-3813 4681/Fax: 08-3813 4680
Hotline: 0908 507 021/ 0909 951 237 | Email: sales@caovietcuong.com
Website: www.caovietcuong.com | www.thietbidomuc.com
Đồng hồ đo lưu lượng(Electromagnetic Flowmeter)
-
ModelDHN
-
Mã sốGV1-07663
-
BrandApeuro
-
Đơn giáCall

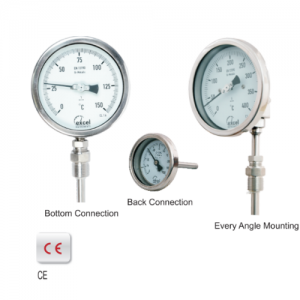

All SS Industrial Dial Thermometer(Đồng hồ đo nhiệt độ)
-
