Đồng Hồ Đo Lưu Lượng BPF300
Hãng sản xuất
NEW-FLOW
Warranty
Đài loan
Mode
BPF300
Code
GE1-01639
Price
Call
0
Category
New-Flow flowmeters (variable type), water/air
Size
Range
Views
3834
Date update
19/11/2011
Quantity
Mô tả sản phẩm

Mô tả sản phẩm

Đồng Hồ Đo Lưu Lượng BPF300

Model                                              : BPF300

Manufacture                                   : NEW - FLOW

BPF300 for high flows of gas and liquid

Case material                                 : SS316

Body wetted parts                         : in PVC, CPVC, PVDF Indication via magnetic coupling (no sealed)

Scales calibrated                           : in I/h, m³/h, kg/h, %, etc.

Flow rates for                                 : - Water: 4 l/h up to 15,000 l/h.

                                                             (special ranges on request)

                                                           - Air: 0.1 Nm³/h up to 450 Nm³/h.

                                                             (special ranges on request)

Connection types                           : Thread NPT or BSP

Connection size                             : ½" ~ 2½" NPT or BSP

Mounting length                             : 250 mm, standard or others

Protection class                             : IP65

Accuracy                                          : ±2% F.S (±1.6% F.S Option)

Max. working pressure                 : 20 kg/cm² (standard)

Max. working temperature           : PVC: 0 ~ 40°C; CPVC: 0~60°C; PVDF: -30°C ~ 100°C



Standard Scales

A. Float Material: SS316



Tube L/H 20°C
Water		 NM³/H
Air 20°C 1.013bar
BPF3001 4~30 0.1~1
BPF3002 4~40 0.13~1.3
BPF3003 5.5~55 0.17~1.7
BPF3004 8~80 0.2~2
BPF3005 16~160 0.5~5
BPF3006 18~180 0.6~6
BPF3007 30~300 1~10
BPF3008 50~500 1.5~15
BPF3009 60~600 1.8~18
BPF3010 70~700 2~20
BPF3011 100~1000 3~30
BPF3012 120~1200 4~40
BPF3013 160~1600 5~50
BPF3014 200~2000 6~60
BPF3015 240~2400 7~70
BPF3016 280~2800 8.5~85
BPF3017 320~3200 9~90
BPF3018 350~3500 10~100
BPF3019 500~5000 14~140
BPF3020 600~6000 15~150
BPF3021 700~7000 20~200
BPF3022 800~8000 24~240
BPF3023 1000~10000 30~300
BPF3024 1200~12000 35~350
BPF3025 1400~14000 40~400
BPF3026 1500~15000

45~450













































Ordering Information



Code Body & wetted parts
A PVC, standard
B CPVC
C PVDF
D option











Code Float material
A SS316
B SS316L
C PVDF
D option











Code Connection rating
0 Thread connection







Code Connection size
2B 1/2" BSP (Female)
2N 1/2" NPT (Female)
6B 3/4" BSP (Female)
6N 3/4" NPT (Female)
10B 1" BSP (Female)
10N 1" NPT (Female)
12B 1½ BSP (Female)
12N 1½ NPT (Female)
20B 2" BSP (Female)
20N 2" NPT (Female)
22B 2½" BSP (Female)
22N 2½" NPT (Female)























Code Protection Class
IP IP65







Code Fluid
G Gas
L Liquid









Code Range
S Standard range
  Please directly fill out the flow range in the order code.











------------------------------------------------------------------------------------------------------------------------------------

ĐẠI LÝ PHÂN PHỐI CHÍNH THỨC TẠI VIỆT NAM |  CÔNG TY TNHH TM-DV-KT CAO VIỆT CƯỜNG
  Số 89 hẻm 249 Tân Kỳ Tân Quý, P.Tân Sơn Nhì, Q.Tân Phú, HCMC
Tel: 08-3813 4681/Fax: 08-3813 4680
Hotline: 0908 507 021/ 0909 951 237 | Email: sales@caovietcuong.com
Website: www.caovietcuong.com | www.thietbidomuc.com

Other product

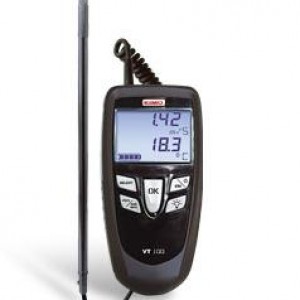

Anemometer - Hotwire - Model VT100

Anemometer - Hotwire - Model VT100

  • Mode
    VT100
  • Code
    3893
  • Hãng sản xuất
  • Price
    Call

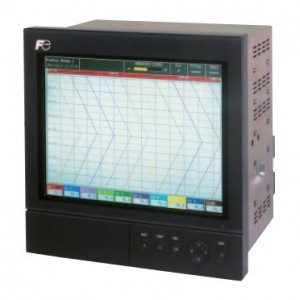

Bộ Ghi Dữ Liệu - Recorder model PHU, EDS10-79b

Bộ Ghi Dữ Liệu - Recorder model PHU, EDS10-79b

  • Mode
    PHU, EDS10-79b
  • Code
    GE1-01862
  • Hãng sản xuất
  • Price
    Call

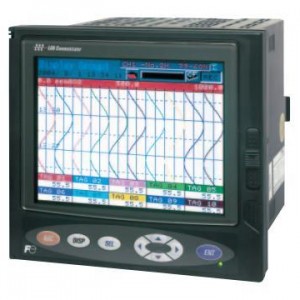

Bộ Ghi Dữ Liệu - Recorder model PHR-4, EDS10-74i

Bộ Ghi Dữ Liệu - Recorder model PHR-4, EDS10-74i

  • Mode
    PHR-4, EDS10-74i
  • Code
    GE1-01861
  • Hãng sản xuất
  • Price
    Call

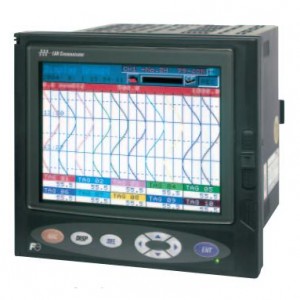

Bộ Ghi Dữ Liệu - Recorder model PHL, EDS10-75i

Bộ Ghi Dữ Liệu - Recorder model PHL, EDS10-75i

  • Mode
    PHL, EDS10-75i
  • Code
    GE1-01860
  • Hãng sản xuất
  • Price
    Call

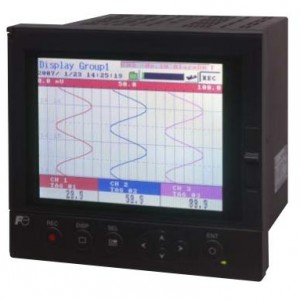

Bộ Ghi Dữ Liệu - Recorder model PHF, EDS10-77d

Bộ Ghi Dữ Liệu - Recorder model PHF, EDS10-77d

  • Mode
    PHF, EDS10-77d
  • Code
    GE1-01859
  • Hãng sản xuất
  • Price
    Call

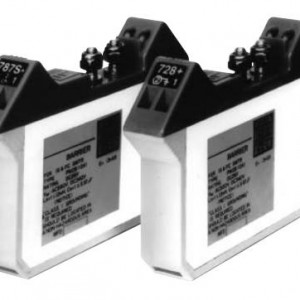

Khe Cách Ly An Toàn Model PWX, EDS13-18b

Khe Cách Ly An Toàn Model PWX, EDS13-18b

  • Mode
    PWX, EDS13-18b
  • Code
    GE1-01858
  • Hãng sản xuất
  • Price
    Call
Diaphragm Seals 4

Diaphragm Seals 4

  • Mode
    Diaphragm Seals 4
  • Code
    GE1-01857
  • Hãng sản xuất
  • Price
    Call
Diaphragm Seals 3

Diaphragm Seals 3

  • Mode
    Diaphragm Seals 3
  • Code
    GE1-01856
  • Hãng sản xuất
  • Price
    Call

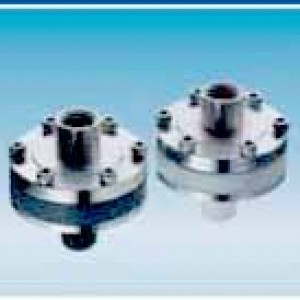

Diaphragm Seals 2

Diaphragm Seals 2

  • Mode
    Diaphragm Seals 2
  • Code
    GE1-01855
  • Hãng sản xuất
  • Price
    Call

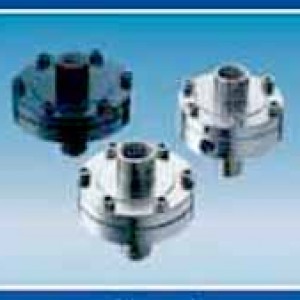

Diaphragm Seals
