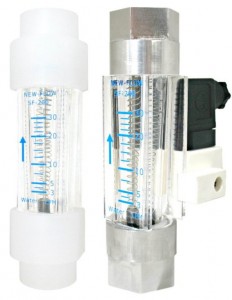

ĐỒNG HỒ ĐO LƯU LƯỢNG SF200

Model                                             : SF200

Manufacture                                : NEW - FLOW

Service                                         : liquid, oil

Wetted parts material                : Body-Polycarbonate (P.C) Plastic O-ring-Viton, Float-magnet coating with polypropylene (P.P)

Connection material                   : SS316; Plastic (P.P, P.V.C, PVDF)

Connection size                           : 3/8", 1/2", 3/4" NPT female available

Mounting                                        : vertical and horizontal available, various flow directions

Temperature & pressure limits: 300 psig (20bar) @ 100°F(38°C)

Temperature limit                       : -24°C~+54°C

Accuracy                                      :±5% full scale

Alarm switch                                : one setting point, form A N.O. type bistable switch

Switch rating                               : AC 125V 0.5A / DC 100V 10W / Max. DC 250V<1mA

Weight                                          : approach 0.35 kg

(Contact setting point should be within 10% to 80% of FS)



Ordering information



Code	Flow Range
A	1~4 LPM	E	3~30 LPM
B	1~10 LPM	F	5~50 LPM
C	2~20 LPM
D	4~40 LPM











Code	Alarm Switch
1R	One setting point
0	Without alarm









Code	Connection Material
(1)	SS316
(2)	P.P
(3)	P.V.C
(4)	PVDF













Code	Process Connection in Female
A	3/8" NPT (L=150mm)
B	1/2" NPT (L=150mm)
C	3/4" NPT (L=162mm) (switch type not available)













Code	Flow Direction
BT	Bottom to Top
TB	Top to Bottom
RL	Right to Left
LR	Left to Right













------------------------------------------------------------------------------------------------------------------------------------
