Power Requirements:

Universal 20-250 VAC 50/60 Hz 20-250 VDC

Power Consumption:

3 VA max.

Max Internal Bin Temp:

-22° F to +140° F (-30° C to 60° C)

Operating Temperature:

Std Models:

to 176° F (+80° C)

Hi-Temp Unit:

to 302° F (+150° C)

Output Relay:

SPDT dry contact; 5 amps @ 250 VAC max.

Sensitivity:

1.25 lb/ft³ (20 kg/m³ ) minimum material density
Jumper selectable: A (High > 1.25 lb/ft³ )(20 kg/m³ )
B (Medium > 10 lb/ft³ )(160 kg/m³ )
C (Low, product build-up applications)

Time Delay:

Hold-off, fixed delay of 1 second
Hold-on, fixed delay of 2-5 seconds

Fail-Safe:

Jumper selectable (high - FH, low - FL)

Operating Frequency:

280 Hz

Enclosure:

Die cast aluminum, beige powder coat; NEMA 4; IP65

Probe/Gland Material:

304 stainless steel

Process Connection:

1-1/2" NPT

Pressure Rating:

150 PSI (10.4 bar)

Wire Entry:

M20 x 1.5 cable gland, remove for 1/2" NPT

Indicators:

Red LED – Status dependent on material sensing and il-safe selection

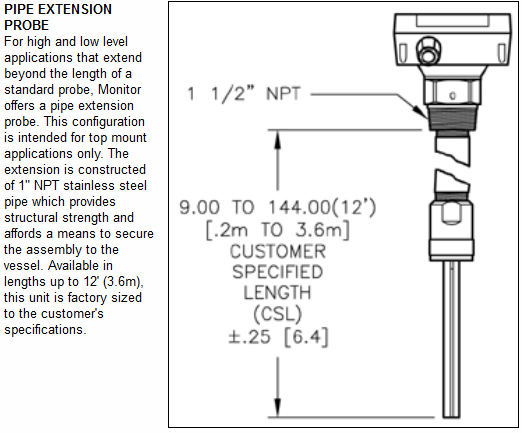

Solid Extension:

1" pipe, 304ss, 12' (3.6m) length max. (customer specified length)

Cable Extension:

Polyurethane sheathed, steel rope reinforced; 20' (6.1m)length max. (customer specified length)

Interconnection Distance:

6' (1.8m) factory installed flexible conduit (hi-temp models)

Weight:

4.5 LB (2 kg)(standard model only)
