Valve manifolds

---------------------

Manufacturer: Aplisens(Poland)

Model:  VM5 Series

Features:

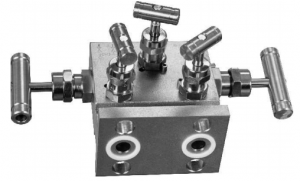

5-valve manifolds are used where relative pressure transmitters are installed. They enable essential operations to be performed on the transmitters, such as starting up a transmitter or setting the zero position in conditions of static or atmospheric pressure. The five-valve manifoldal so enables a calibrat or to be connected for metrological testing of the transmitter. The VM-5 have a modern lightweight construction.The high precision of manufacture enables individual valves to be opened and closed easily.

Specification:

Maximum pressure                 400  bar
                                                  (according  to  the  graph)
Pin packing                              PTFE or graphite
Body material                          316ss
Weight                                      VM - 3  1.8  kg
                                                  VM - 5  2.54  kg
Connectors:
to  the  installation                  –½  NPT  sockets
to  the  transmitter                  –  54  mm  spacing

Order:

---------------------------------------------------
