Set-point generator with analog sensor input, alarms and analog outputs

-------------------

Manufacturer: Fluidwell(USA)

Model:  F197 Series

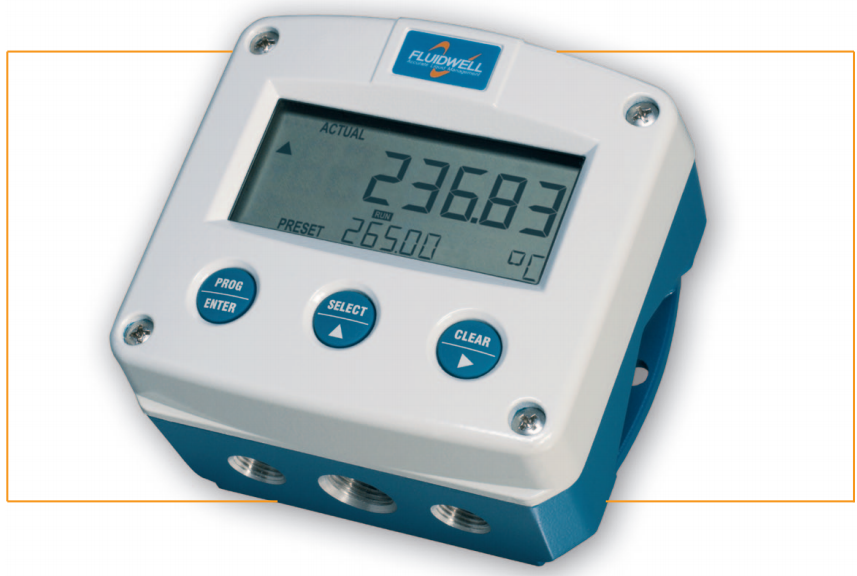

           The F197 is a manual set-point generator. The operator enters an analog or a scaled output value or a percentage which will be transmitted as a (0)4 – 20mA or 0 – 10V DC signal to a control device. An analog input signal is possible but not neccessary. There is no direct control relationship between the input and output value. A wide range of options further enhance this models capabilities, including Intrinsic Safety for hazardous area applications and full Modbus communication.

Features

• Displays the actual process value and transmitted value simultanously.
•  Manual (0)4–20mA/0–10V DC control output.
•  Preset value can be entered as a scaled value (e.g. 415°C), analog value (e.g. 15,3mA) or as a percentage.
•  Preset value: seven 17mm (0.67") digits during programming and 8mm (0.31") digits during process.
•  Actual value: seven 17mm (0.67") digits during process.
•  Modbus communication for remote control.
•  Green LED backlight.
•  Backup of settings in EEPROM memory.
• Very compact design for panel mount, wall mount or field mount applications.
• Rugged aluminum or GRP field mount enclosure IP67 / NEMA4X.
• Operational temperature -40°C up to +80°C   (-40°F up to 176°F).
• Intrinsically Safe - ATEX and IECEx approval for gas and dust applications.
• Explosion/flame proof  II 2 GD EEx d IIB T5.

---------------------------------------------------
