RECTANGULAR AIR PAD
-------------------
Manufacturer: Monitortech(USA)
Model: RECTANGULAR AIR PAD
The Monitor air pad bin aerator is an aeration device used to promote the flow of dry bulk powders from a storage vessel.
Features
 Effective radius of 10 inches (254 mm)
Adapts to almost any bin configuration
Low cost
Easy Installation
Minimal maintenance
Technical Data:
|
AIR SUPPLY/CONSUMPTION:
|
|
Air Supply:
|
Clean, dry air 3 to 5 psi
|
|
Air Consumption:
|
1 psi - 4.2 scfm (0.07 bar - 1.2 m3/min)
2 psi - 5.7 scfm (0.14 bar - 1.6 m3/min)
3 psi - 6.5 scfm (0.21 bar - 1.8 m3/min)
4 psi - 7.1 scfm (0.28 bar - 2.0 m3/min)
5 psi - 7.6 scfm (0.35 bar - 2.2 m3/min)
|
|

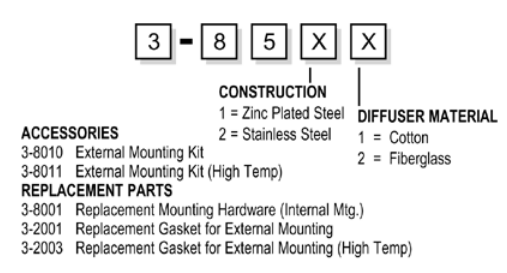

MATERIALS OF CONSTRUCTION
|
|
Body:
|
Zinc-plated steel or 304 stainless steel
|
|
Diffuser:
|
Cotton (up to 180°F/82°C) Fiberglass (up to 650°F/343°C)
|
|
Diffuser Screen:
|
16 mesh zinc-plated steel or 304 SS
|
|
Air Inlet Nipple/Nut:
|
1/8" NPT nickel-plated brass
|
|
Spacer Washers:
|
Nickel-plated steel
|
|
Washer/Gasket:
|
Silicone (up to 650°F/343°C)
|
|
EXTERNAL MOUNTING KIT:
|
|
Gaskets:
|
Neoprene (up to 180°F/82°C)
|
|
High Temp Gasket:
|
Up to 300°F/149°C
|
|
Brackets/Lockwasher:
|
Zinc-plated steel
|
---------------------------------------------------
