Proximity Bin Level Switch
-------------------
Manufacturer: Monitortech(USA)
Model: PDC-30 Series
Introduction:
The models PDC-30 proximity bin level switches are solid state point level devices used to detect the absence or presence of bulk solids. The compact configuration makes this product ideal for tight spaces or low cost level detection. As material comes in contact with, or in close proximity to, PDC-30, an internal solid state switch is activated. The PDC-30 is DC operated (10-40 VDC) and is available in either PNP or NPN configuration, each of which can be wired in either a normally open or normally closed operation mode
Technical Data:
|
Model PAC-30U:
|
|
Housing:
|
Thermoplastic Polyester
|
|
Enclosure Protection:
|
IP67 (NEMA 4 equivalent)
|
|
Power Requirements:
|
10-40 VDC
|
|
Mounting Thread Size:
|
M30 x 1.5
|
|
Sensing Distance:
|
4 to 25 mm adjustable
|
|
Indicator:
|
LED, yellow
|
|

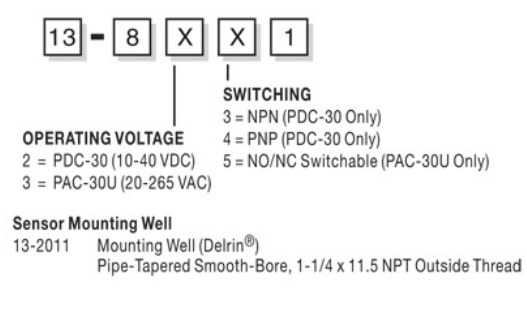

Output:
|
13-8231, NPN (sinking)
13-8241, PNP (sourcing)
|
|
Leakage Current:
|
<10 mA
|
|
Load Current:
|
0 - 200 mA
|
|
Frequency of Operating Cycle:
|
100 Hz
|
|
Operating Temperature:
|
-13° to 176° F (-25° to 80° C)
|
|
Electrical Connections:
|
Cable, 6ft(1.8m), 18-20 AWG
|
|
Max. Pressure:
|
1.4 psi
|
|

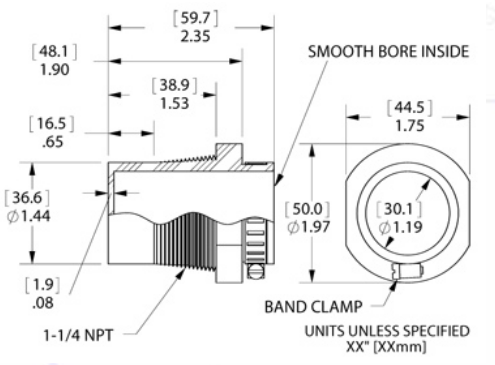

Max. Pressure:
(with mounting well)
|
125 psi
|
|
Approvals:
|
CE Mark
|
------------------------------------------------------------------------------------------------------------------------------------
