POSITIVE DISPLACEMENT FLOWMETERS
-------------------
Manufacturer: Macnaught(Australia)

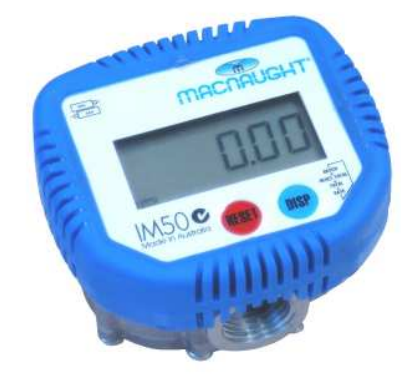

Model: IM50 Series
These high pressure positive displacement meters are suitable for in-line and end-of-line applications and features a rugged and robust register with integrated electronics and large LC display.
Features
- robust aluminium construction
- user selectable display units: litres, gallons, pints, quarts
- easy to read and resetable 6-digit LC display
- batch total, reset total, non-reset total and rate of flow display options
- pulse output model includes 1 m (3 ft) fly lead with either reed switch and/or hall effect sensor
- 2 year average battery life (battery type: 2 x AAA alkaline)
- protective shroud on meter (LCD model only)
- fully serviceable
- 10 year warranty and parts guarantee Specifications IM50/IM50P IM75/IM75P
Specification:
|
IM50 |
| compatible fluids: |
lubricating oils up to SAE140, automatic transmission fluid and anti-freeze/anti-boil, diesel and kerosene |
| wetted components: |
acetal (suitable with oils), aluminium, nitrile (NBR), steel |
| accuracy: |
±0.5% of reading (lubricating oils) |
| flow range: |
1-30 L/min (0.26-8 US gal/min) |
| max. working pressure: |
10 350 kPa (1 500 psi, 103.5 bar) |
| inlet thread: |
½” BSPT or NPT (F) |
| outlet thread: |
½” BSPT or NPT (F) |
| operating temperature: |
-5ºC (23ºF) to 55ºC (131ºF) |
| weight (approx): |
430 g (0.95 lbs) |
| K factor: |
112ppL (424 pp USG) |
---------------------------------------------------
