OPERATOR INTERFACE CONTROL CONSOLE
-------------------
Manufacturer: Monitortech(USA)
Model: HMI2 SERIES
Introduction:
The HMI2 operator interface control console provides convenient, local interface for Monitor’s “Smart” RS-485 SiloPatrol® SMU SE cable-based inventory monitoring sensors and/or Flexar® guided wave radar sensors. HMI2 allows for monitoring up to 32 SMU and/or Flexar sensors. The multi-functional HMI2 controls sensor operations, displays measured and calculated data and performs/displays system and sensor diagnostic messages.
The HMI2 is easily programmed to display calculated level, volume, weight or percent in addition to the basic distance measurement. Manual readings are taken by depressing the MEAS button, followed by the channel number, followed by ENTER.
The HMI2 can also be programmed to operate the SMU “Smart” RS-485 sensors automatically. Menu options allow the user to select days of SMU operation (such as Mon.-Fri.), time window (such as 7 a.m.-3 p.m.) and measurement interval (minimum 30 minutes).
.
Technical Data:
|
Power Requirements:
|
100-240V AC, 50/60Hz
|
|
Power Consumption:
|
6VA max
|
|
Ambient Operating Temperature:
|
-4° F to 131° F (-20° C to 55° C)
|
|
Sensor Communication:
|
RS-485 half-duplex, non-isolated, proprietary protocol
|
|
Channels:
|
Two 16-channel networks (32 channels total)
|
|
Display:
|
2 lines, 20 characters per line, 0.22” x 0.12” characters, LCD backlight
|
|
Keypad:
|
20 keys
|
|
Indicators:
|
8 LEDs (function, relay, error status)
|
|
Enclosure:
|
Painted Aluminum
|
|

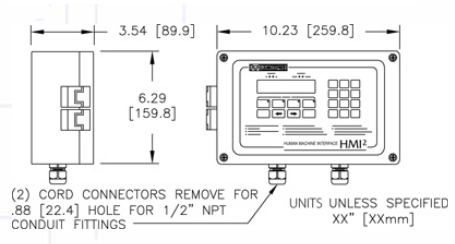

Overall Dimensions (HxWxD):
|
6.29” x 10.23” x 3.54”
(160mm X 260mm X 90mm)
|
|
Approvals:
|
CE Mark
|
------------------------------------------------------------------------------------------------------------------------------------
