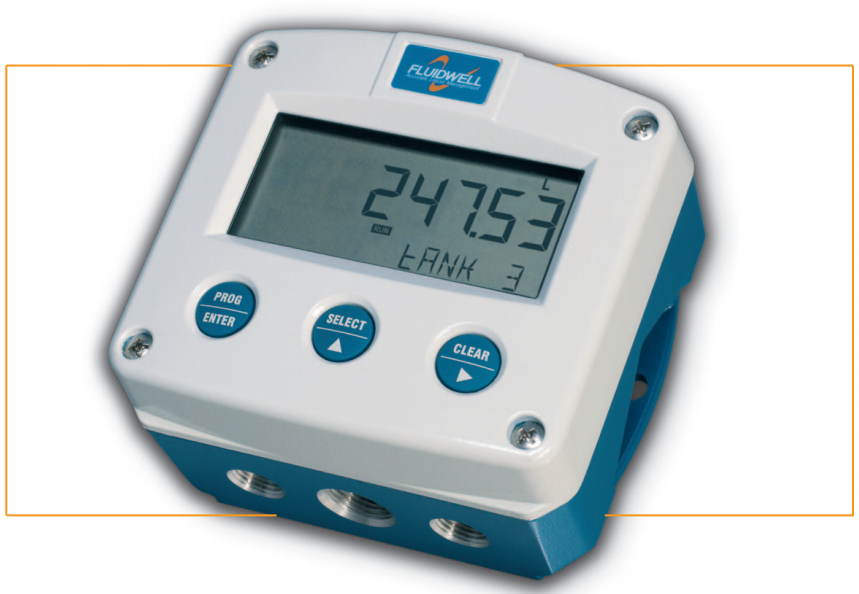

Modbus display with alarm and analog outputs

-------------------

Manufacturer: Fluidwell(USA)

Model:  F193 Series

            The F193 is a versatile large digit Modbus display. All displayed information and signal outputs are controlled through the Modbus ASCII / RTU communication protocol. Information of nine different tanks or products can be displayed with an automatic toggle function or can be selected by the operator. Off-course, it can also be selected and locked through communication. A wide range of options further enhance this models capabilities, including Intrinsic Safety for hazardous area applications.

Features

•  Fully controlled through Modbus ASCII / RTU communication protocol.
•  Nine different product or tank values can be displayed.
•  Displays actual value, product / tank I.D., measuring unit, status and alarm messages.
•  Actual values are operator selectable or with the automatic toggle function.
•  Alarms can be terminated through communication or after operator interaction.
•  Actual value: six large 17mm (0.67") digits.
•  Backup of settings in EEPROM memory.
• Operational temperature -40°C up to +80°C   (-40°F up to 176°F).
• Intrinsically Safe - ATEX and IECEx approval for gas and dust applications.
• Explosion/flame proof  II 2 GD EEx d IIB T5.
• Loop or battery powered, 8 - 24V AC/DC or 115 - 230V AC.
•  Very compact design for panel mount, wall mount or field mount applications.
•  Rugged aluminum or GRP field mount
enclosure IP67 / NEMA4X.

---------------------------------------------------
