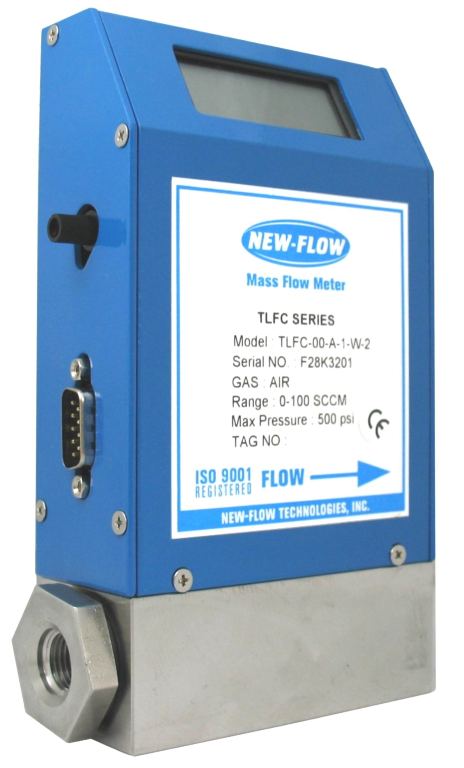

Mass Flow Meter
---------------------
Manufacturer: New-Flow(Taiwan)
Model: TLFC Series
Technical Data:
Wetted Material: Standard flowbody - SS316; O-ring - Viton.
Output Signal: 0-5 VDC Linear min. load 1000 Om or 4-20 mA Linear, loop resistance 500 Om.
Input Power: 24VDC, 15VDC 115VAC, 220VAC @500 available.
Turn Down Ratio: 100:1.
Repeatability: +/-0.15% FS or better.
Electric Connection: 9 Pin post header.
Process connection: 1/4" NPT female.
Range:0-10 SCCM to 50 SLM(24VDC)
0-10 SCCM to 20 SLM(15VDC)
Max Pressure: 500 PSIG
Respone Time: 1 second.
Weight: app 1.35 kg with power supply.
Demension:
------------------------------------------------------------------------------------------------------------------------------------
