INVENTORY MANAGEMENT SOFTWARE V3.5
-------------------
Manufacturer: Monitortech(USA)
Model: SILO TRACK™
Introduction:
SiloTrack™ Inventory Management Software Version 3.5 is the next evolution of Monitor’s popular PC-based application software that provides users with an unsurpassed, flexible graphical interface for our industry-standard SiloPatrol® SE Model SMU inventory monitoring sensors and our Flexar® guided wave radar continuous level measurement sensors. Refer to bulletins 343P (SMU) and 353P (Flexar) for more information.

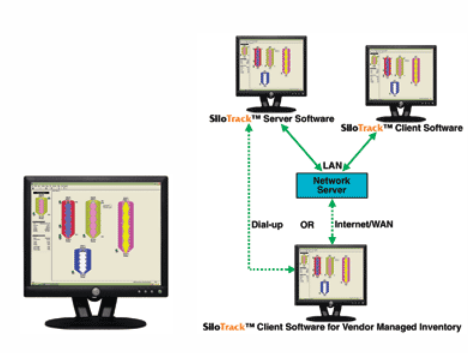

SiloTrack software includes a Server and Client version. Together SiloTrack Server and Client provide inventory monitoring and management capability to a virtually unlimited number of users. Users can be internal and external to your facility, allowing you to easily implement remote inventory monitoring and vendor managed inventory.
The SiloTrack Server software is the master operator interface for our SiloPatrol SE and Flexar “smart” sensors. This software is installed on the PC in which the RS-485 communication sensor network(s) will be connected. All application setup and configuration is done with the Server software.
The SiloTrack Client software provides remote users access to the inventory monitoring system and can be installed on PC’s that can interface with the SiloTrack Server PC via LAN, WAN/Internet or Dial-up modem. Security is established in the SiloTrack Server software. The type and method of connection is established in the SiloTrack Client software. The SiloTrack Server software allows you to establish security for access by any Client user.
Auxiliary Output Enclosures (AOE) and Remote Display Units (RDU) can be added to make any SiloTrack system a true management and control system (RDU’s can not be used with Flexar level sensors). Relay action and analog outputs are easily setup in the SiloTrack Server software.
.
Technical Data:
|
Processor:
|
Pentium® IV
|
|
Bus:
|
PCI slots for RS-485 Communication Card(s) (one available slot required for up to 64 sensors / two available slots required for 65 to 128 sensors) or serial port used in conjunction with an RS-485 converter
|
|
Memory:
|
1 GB
|
|
Video:
|
SVGA with at least 4MB video memory
|
|
Hard Drive:
|
20 GB with 650 MB of available space
|
|
Operating System:
|
Windows® NT 4.0, 2000, Me or XP (consult factory for other operating systems)
|
|
Required Software:
|
Internet Explorer® 4.0 Service Pack 4 for Windows® NT 4.0 or greater
|
|
Required Hardware:
|
CD-ROM Drive, 56K Modem, Soundboard and Speakers (may be integrated on CPU board), LAN if Multiple User on LAN or WAN, Internet Connection (full time for remote multi-user), Ethernet Card (if used with LAN)
|
|
Highly Recommended:
|
UPS with AC Line Surge Suppression and Telephone Line Transient Suppression
|
------------------------------------------------------------------------------------------------------------------------------------
