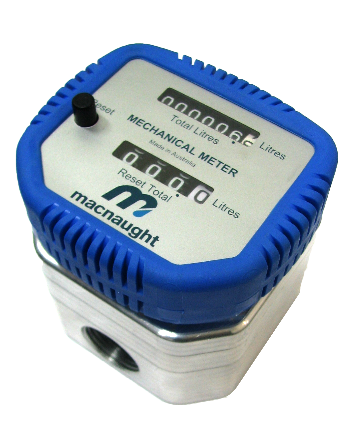

IM60 MECHANICAL INLINE METER
POSITIVE DISPLACEMENT FLOWMETERS
-------------------
Manufacturer: Macnaught(Australia)
Model: IM60 Series
These high pressure positive displacement meters are suitable for in-line and end-of-line applications and each features a rugged and robust register displaying batch and cumulative totals.
Features
- robust aluminium construction
- 4-digit resettable batch totaliser (max 999.9 units)
- 7-digit accumulative totaliser
- available in litres, quarts or US Gallons calibration
- protective shroud on meter
- fully serviceable
- 10 year warranty and parts guarantee
Specification:
|
IM60 |
| compatible fluids: |
lubricating oils up to SAE140, automatic transmission fluid and anti-freeze/anti-boil, diesel and kerosene |
| wetted components: |
acetal (suitable with oils), aluminium, nitrile (NBR), steel |
| accuracy: |
±1% of reading (lubricating oils) |
| flow rate: |
1-50 L/min (0.26-13.21 US gal/min) |
| max. working pressure: |
10 350 kPa (1 500 psi, 103.5 bar) |
| inlet thread: |
¾” BSPT or NPT (F) |
| outlet thread: |
¾” BSPT or NPT (F) |
| operating temperature: |
-10ºC (14ºF) to 55ºC (131ºF) |
| weight (approx): |
950g (2.09lbs) |
---------------------------------------------------
