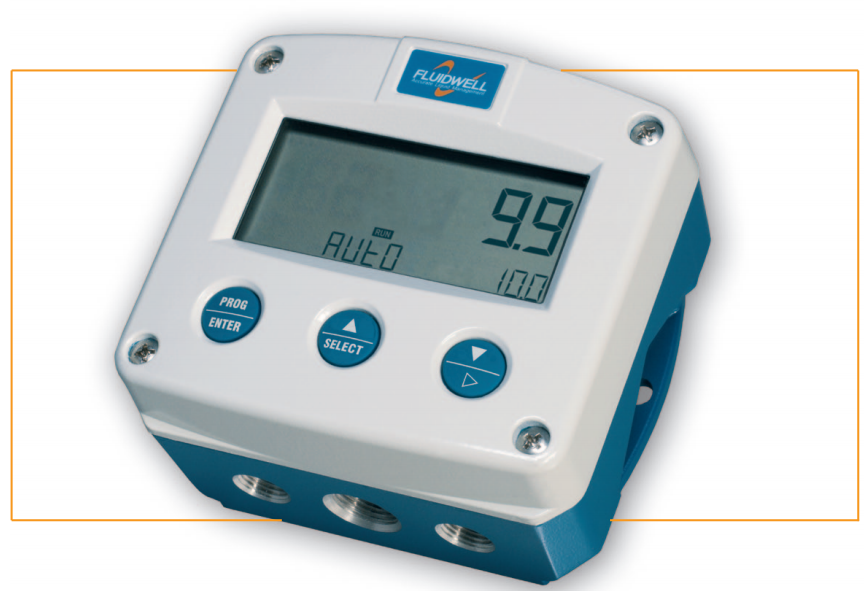

Flow rate controller with analog control output and high / low alarms

-------------------

Manufacturer: Fluidwell(USA)

Model:  F120 Series

            The F120 is part of the Fluidwell process controller family and is the alternative for local control loops. The single loop flow controller accepts most pulse inputs from flowmeters and has a 4 - 20mA output for controlling a pump or valve.

Features

• Controls the desired volume or mass flow.
• Displays flow rate, alarms, setpoint and total.
• Large 17mm (0.67") digits.
• Safety mode input to place the controller in a safe predefined position.
• External reset / keylock
• Analog output to control a valve.
• Two alarm values can be entered in %: low and high flow rate alarm.
• Bumpless switching between 2 operation modes: Hand and Auto.
• Green LED-backlight.
• Very compact design for panel mount, wall mount or field mount applications.
• Operational temperature -40°C up to +80°C (-40°F up to 176°F).
• Intrinsically Safe - ATEX and IECEx approval for gas and dust applications.
• Explosion/flame proof  II 2 GD EEx d IIB T5.
• Full Modbus communication RS232/485/TTL.
• Loop or battery powered, 8 - 24V AC / DC or 115 - 230V AC power supply

---------------------------------------------------
