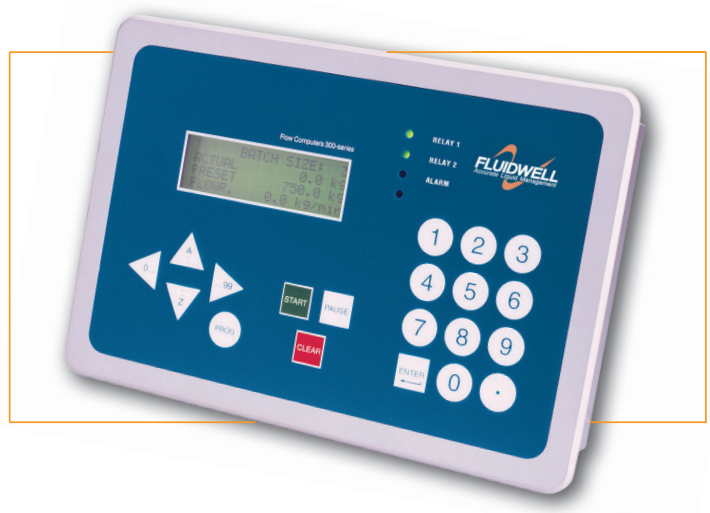

Dual batch controller in one compact enclosure
-------------------
Manufacturer: Fluidwell(USA)
Model: FWDS330 Series
The 330 dual batch controller incorporates two separate batch controllers in a single enclosure. For example, this means that you can batch 25 ml and 30 m³ at the same time or twenty times 5 gallons and 2000 kg once! The batches can be started up at any time as well as changing the preset values. For each product, separate values are entered to monitor the allowed batch size and flow rate. The overrun correction is logged and executed for each batch individually. For clear identification, alphanumerical product names of up to 17 characters can be entered. During the batch, the product-name, preset value, batched quantity, flow rate, remaining quantity and status are displayed. The status screen will indicate if a batch is ready, running or in an alarm situation.
Features
| • |
Two separate batch-controllers. |
| • |
Remaining quantity and status displayed. |
| • |
Displays product name, preset value, actual batched value and flow rate. |
| • |
Full numerical keyboard with twenty industrial micro-switch keys. |
| • |
Alphanumerical LCD display of 4 lines x 20 positions. |
| • |
User-friendly operation with clear menu structure. |
| • |
No-flow monitoring. |
| • |
Self learning overrun correction. |
| • |
Two-stage control. |
| • |

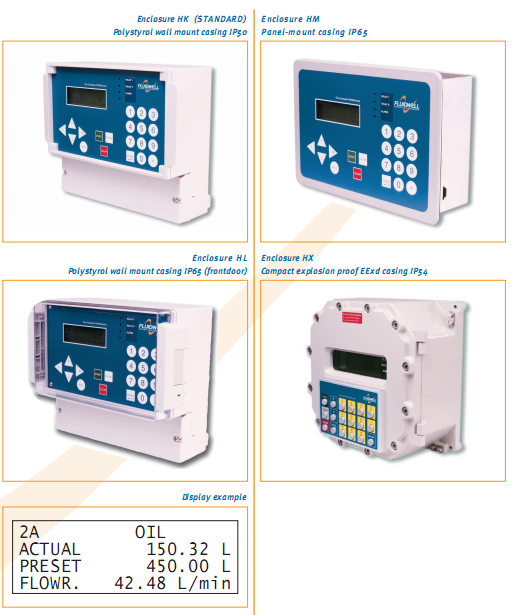

Four styles of housing are available. Wall-mount housing comes as standard. |
| • |
Record of total quantity batched. |
| • |
Record of number of batches executed. |
| • |
Auto backup of settings and running totals in NVRAM memory. |
| • |
Complete data back-up in the event of sudden power failure. |
---------------------------------------------------
