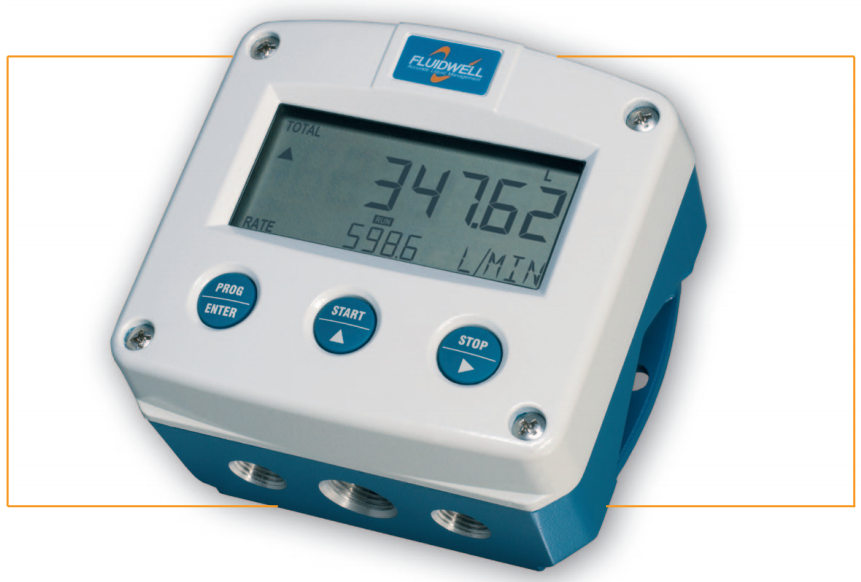

Delivery controller with pump start and valve control

-------------------

Manufacturer: Fluidwell(USA)

Model:  F133 Series

            The F133 is a unique product as it is especially designed for a controlled delivery of undefined quantities. It offers all the functionality known from gas stations to fill-up your car. The unit incorporates special functions with delay times to start a pump first, control a valve and expect a flow within a certain period of time. Moreover, the flow rate and the allowed total dispensed quantity is monitored as well. If, for whatever reason, no pulses are coming in, the delivery will be terminated after a pre-defined time. Sub-deliveries are also catered for allowing you to fill up several compartments within one and the same delivery. A wide selec-tion of options further enhances the capabilities of this model, which includes Intrinsic Safety and full Modbus communication.

Features

• Large display shows supplied quantity, flow rate and status.
• Suitable for filling-up multiple compartments within one delivery.
• All control functions available for pump start, valve control and flow rate monitoring
including flexible response times.
• Selectable on-screen engineering units; volumetric or mass.
• Communication link for customized ticket printing.
• Operational temperature -40°C up to +80°C (-40°F up to 176°F).
• Flow rate monitoring with high and low alarm values.
• Rugged aluminum field mount enclosure IP67/NEMA4X.
• Intrinsically Safe - ATEX and IECEx approval for gas and dust applications.
• Explosion/flame proof  II 2 GD EEx d IIB T5.
• Full Modbus communication RS232/485/TTL.
• Loop or battery powered, 8 - 24V AC/DC or 115 - 230V AC power supply.
• Sensor supply 3.2 / 8.2 / 12 / 24V DC.

---------------------------------------------------
