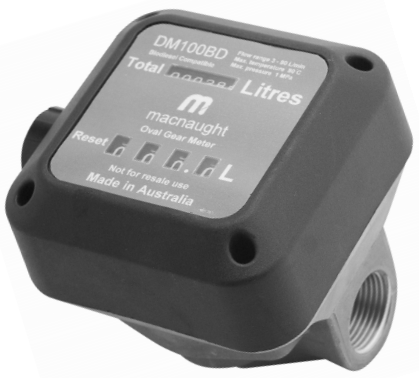

BIODIESEL FUEL METER

-------------------

Manufacturer: Macnaught(Australia)

Model:  DM100-01-BD Series

      A highly reliable and accurate flow meter for all refueling needs

Features

• oval gear mechanism for optimum accuracy

• low pressure drop allows for gravity and in-line applications

• register cap can be removed and rotated for easy display reading

• supplied with integrated mesh strainer

• 4-digit resettable batch totaliser (max 999.9 units)

• 6-digit accumulative totaliser

• available in Litre, US Gal, UK Gal calibration

• HA1S fuel filter (10μm) available separately

• fully serviceable

• 10 year warranty and parts guarantee

Specification:

• compatible fluids (DM100 and DM150): diesel , kerosene and petrol
• compatible fluids (DM100BD): biodiesel
• compatible fluids (HA1S): diesel, kerosene and petrol
• wetted components (DM100): aluminium, zinc plated carbon steel, PEI Resin, viton
• wetted components (DM100BD): aluminium, nickel plated carbon steel, PEI Resin, viton, acetal resin
• accuracy: ± 1% of reading
• flow range: 3 - 80 L/min (0.8 - 21 US gal/min)
• max. pressure: 1 000 kPa (145 psi, 10 bar)
• max. temp: 80° C (176° F)
• inlet thread: 1” BSPT, 1” BSPPL(G) or 1” NPT female
• outlet thread: 1” BSPT, 1” BSPPL(G) or 1” NPT female
• weight: 1.2 kg (2.6 lbs)

---------------------------------------------------
